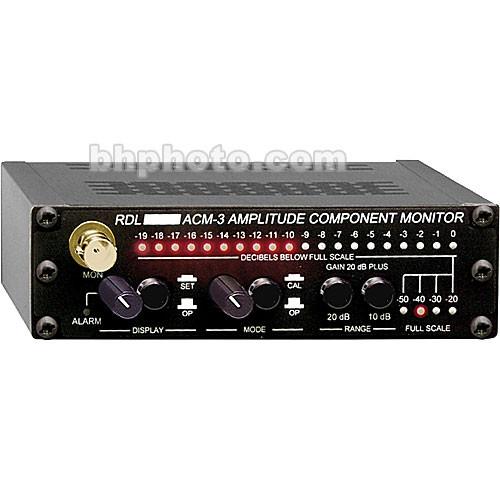

User Manual for RDL ACM-3 AM Noise Monitor Click to enlarge the picture
Contents of the user manual for the RDL ACM-3 AM Noise Monitor
- Product category: Accessories RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Accessories
|
User manual for the RDL ACM-3 AM Noise Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description RDL's ACM-3 uses time-proven, industry accepted technology to control synchronous AM noise in order to maintain clarity, maximize loudness and stereo separation, and assure consistency of your signal coverage.
Used by hundreds of FM stations across the US, the ACM-3 provides the AM measurment and continuous monitoring needed for optimum transmitter tuning and performance. - Time-proven, industry accepted technology
- Allows maximum bandwidth performance
- Accurate AM noise measurement and continuous monitoring
- Maximizes stereo separation
- Reduces subcarrier crosstalk
- Assures consistency of your signal coverage
- Optional rack-mounting accessories available
In the Box RDL ACM-3 AM Noise Monitor Power Supply 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL ACM-3 AM Noise Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL ACM-3 Specs | Input and Output Connectors | 1 x BNC | | Max Input Signal | 30V (Combined Filtered Carrier + AM) | | Measurement Range | -20dB to -69dB (Front-Panel Display)
-10dB to -90dB (Front-Panel Scope Jack) | | Residual Noise | < 95dB Below 100% Amplitude Modulation | | Oscilloscope Jack | BNC 5V p-p for Full-Scale Display | | Audio Output | +4 dBu, 100 Ohm Source Impedance | | THD of Recovered AM | < 0.03% | | DC Output | DC Level Representing Significant Synchronous AM | | Dimensions | 1.7 x 5.8 x 4.1" (43 x 147 x 104mm) | | Power Requirements | 18 VAC, External Supply Included (North America) | | | | Package Weight | 1.542 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.625" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
