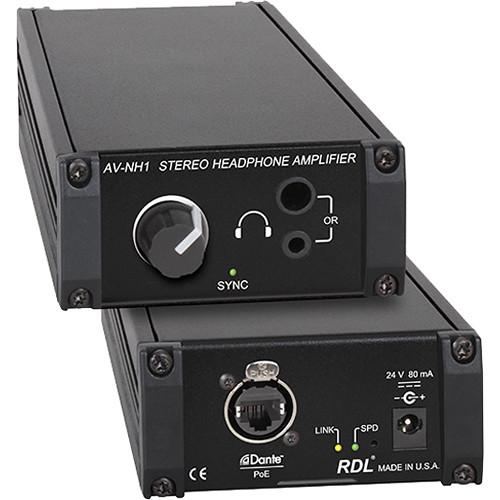

User Manual for RDL AV-NH1 Dante Network to Stereo Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the RDL AV-NH1 Dante Network to Stereo
- Product category: Networked Audio Systems RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Networked Audio Systems
|
User manual for the RDL AV-NH1 Dante Network to Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL AV-NH1 is a Dante network to stereo headphone amplifier designed to convert two Dante digital audio network channels to a stereo analog headphone output for A/V technicians, system installers, and audio engineers in live stage applications, studios, and educational facilities. It accepts a Dante stream at up to 24-bit/96 kHz via an RJ45 Neutrik etherCON port, then outputs analog signal to the 1/4" and 3.5mm TRS headphone jacks, which share an adjustable level control. The AV-NH1 supports powering via a PoE network switch or a 24 VDC external power supply (available separately). LED indicators are provided for sync status as well as Ethernet link and speed. Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness. - Converts two Dante network audio channels to a stereo headphone output
- Configuration requires no special software
- Dante input via RJ45 Neutrik etherCON jack
- 1/4" and 3.5mm TRS stereo headphone outputs
- Front-panel headphone level adjustment
- Supports powering via PoE-enabled network switch or from a 24 VDC external power supply (available separately)
- If PoE power and an external 24 VDC supply are both feeding the AV-XMN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply
- Valid power and synchronization to the Dante network is indicated by a green front-panel LED
- Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
- Mountable on a mic stand via RDL SF-MSM1 adapter (available separately)
- Includes mounting brackets for fixed installation
- Engineered and manufactured in the USA for continuous duty in demanding installations
UPC: 813721019912 In the Box RDL AV-NH1 Dante Network to Stereo Headphone Amplifier Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL AV-NH1 Dante Network to Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL AV-NH1 Specs | Inputs | 1 x RJ45 Neutrik etherCON | | Outputs | 1 x 1/4" TRS headphone output
1 x 1/8" / 3.5 mm TRS mini jack | | Ethernet Protocol | Dante | | PoE | Class 0, IEEE 802.3af | | Transmission Rate | 100 Mb/s | | Bit Depth | 24 | | Sample Rates | 44.1, 48 (default), 88.2, and 96 kHz | | Reference Level | 0 dBFS = 150 mW into 100 Ohms | | Maximum Output Level | 150 mW into 100 Ohms | | Output Impedance | < 50 Ohms | | Frequency Response | 20 Hz to 20 kHz (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
