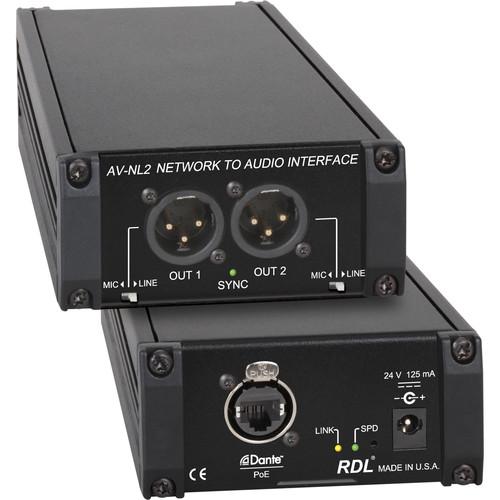

User Manual for RDL AV-NL2 Dante Network Stereo D A Converter Click to enlarge the picture
Contents of the user manual for the RDL AV-NL2 Dante Network Stereo D
- Product category: Networked Audio Systems RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Networked Audio Systems
|
User manual for the RDL AV-NL2 Dante Network Stereo D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL AV-NL2 is a Dante network stereo D/A converter designed to convert two Dante digital audio network channels to balanced stereo analog outputs for A/V technicians, system installers, and audio engineers in live stage applications, studios, and educational facilities. It accepts a Dante stream at up to 24-bit/96 kHz via an RJ45 Neutrik etherCON port, then outputs analog signal to the balanced XLR 3-pin male connectors. Each output is selectable to operate at mic or line level to accommodate a variety of mixer and recorder inputs. Whether powered via a PoE network switch or a 24 VDC external power supply (available separately), the AV-NL2 delivers low noise, low distortion, and high headroom. LED indicators are provided for sync status as well as Ethernet link and speed. Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness. - Converts two Dante network audio channels to stereo analog outputs
- Digital-to-analog converter supports up to 24-bit/96 kHz resolution
- Configuration requires no special software
- Dante input via RJ45 Neutrik etherCON jack
- Two balanced XLR 3-pin male outputs
- Per-channel selectable mic- or line-level output signal
- Nominal line-level output is +4 dBU for -20 dBFS
- Microphone output level is attenuated 50 dB
- RDL analog filtering for enhanced audio performance
- Supports powering via PoE-enabled network switch or from a 24 VDC external power supply (available separately)
- If PoE power and an external 24 VDC supply are both feeding the AV-XMN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply
- Valid power and synchronization to the Dante network is indicated by a green front-panel LED
- Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
- Includes mounting brackets for fixed installation
- Engineered and manufactured in the USA for continuous duty in demanding installations
UPC: 813721019929 In the Box RDL AV-NL2 Dante Network Stereo D/A Converter Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL AV-NL2 Dante Network Stereo D A Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL AV-NL2 Specs | Inputs | 1 x RJ45 Neutrik etherCON | | Outputs | 2 x XLR 3-pin male (balanced) | | Ethernet Protocol | Dante | | PoE | Class 0, IEEE 802.3af | | Transmission Rate | 100 Mb/s | | Bit Depth | 24 | | Sample Rates | 44.1, 48 (default), 88.2, and 96 kHz | | Operating Level | -20 dBFS = +4 dBu | | Reference Level | 0 dBFS = +24 dBu | | Maximum Output Level | +24 dBu (line level) | | Nominal Output Level | Line: +4 dBu
Mic: -45 dBu into 150 Ohms | | Output Impedance | < 100 Ohms (balanced) | | Frequency Response | 20 Hz to 20 kHz (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
