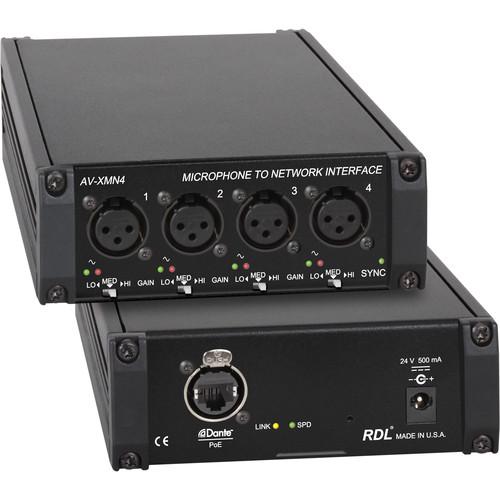

The RDL AV-XMN4 is a 4-channel microphone to Dante network interface designed to convert multiple mic-level signals to Dante digital audio network channels for A/V technicians, system installers, and audio engineers in live stage applications and educational facilities. Its four XLR 3-pin female microphone inputs go through A/D conversion at up to 24-bit/96 kHz resolution, then feed the RJ45 Neutrik etherCON output port. The discrete mic preamps are equally capable of handling dynamic and condenser microphones thanks to 48 VDC phantom power, 3-position gain switches, and dual-LED VU meters. The AV-XMN4 supports powering via a PoE network switch or a 24 VDC external power supply (available separately). Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness.
  • Converts up to four microphone signals to Dante network audio channels
  • Four XLR 3-pin female inputs
  • 3-position gain switch for each mic input
  • Configuration requires no special software
  • Supplies 48 VDC phantom power to each mic input
  • Dante output via RJ45 Neutrik etherCON jack
  • Supports powering via PoE-enabled network switch or from a 24 VDC external power supply (available separately)
  • If PoE power and an external 24 VDC supply are both feeding the AV-XMN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply
  • Valid power and synchronization to the Dante network is indicated by a green front-panel LED
  • Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
  • Chassis design protects front-panel switches
  • Mountable on a mic stand via RDL SF-MSM1 adapter (available separately)
  • Includes mounting brackets for fixed installation
  • Engineered and manufactured in the USA for continuous duty in demanding installations
UPC: 813721019936 In the Box RDL AV-XMN4 4-Channel Microphone to Dante Network Interface
  • Mounting Brackets
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RDL AV-XMN4 4-Channel Microphone to Dante Network Interface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RDL AV-XMN4 Specs

    Inputs 4 x XLR 3-pin female
    Outputs 1 x RJ45 Neutrik etherCON
    Ethernet Protocol Dante
    PoE Class 0, IEEE 802.3af
    Transmission Rate 100 Mb/s
    Bit Depth 24
    Sample Rates 44.1, 48 (default), 88.2, and 96 kHz
    Phantom Power P48, 48 VDC (phantom standard IEC 61938: 2013)
    Nominal Operating Level -20 dBFS = +4 dBu
    Reference Level 0 dBFS = +24 dBu
    Gain Lo: 40 dB
    Med: 48 dB
    Hi: 62 dB
    Maximum Input Level Lo: -16 dBu
    Med: -24 dBu
    Hi: -38 dBu
    Nominal Input Level Lo: -36 dBu
    Med: -44 dBu
    Hi: -58 dBu
    Input Impedance > 2.5 kOhms
    Frequency Response 20 Hz to 20 kHz (
