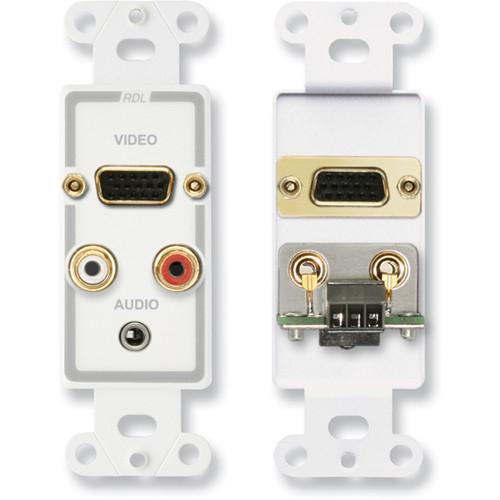

Product description The white/gray D-AVM4 Audio and Video Monitor Jack Panels from RDL is a suitable choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors, and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel. The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB-15 video connector. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. In addition, the audio signals are unbalanced and intended for short wiring runs, where balanced lines are not required. In the Box RDL D-AVM4 Audio and Video Monitor Jack Panels (White/Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-AVM4 Audio and Video Monitor Jack Panels in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-AVM4 Specs | Input Connectors | Audio:
2 x RCA jacks with gold contacts (left and right)
1 x Mini-jack 3.5 mm (stereo) Video:
1 x Female DB-15 | | Output Connectors | Audio:
Detachable terminal block (left and right unbalanced audio)
Video:
Female DB-15 (pass-through from front panel) | | Dimensions (W x H x D) | 1.3 x 4.1 x 1.8" (3.3 x 10.4 x 4.5 cm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
