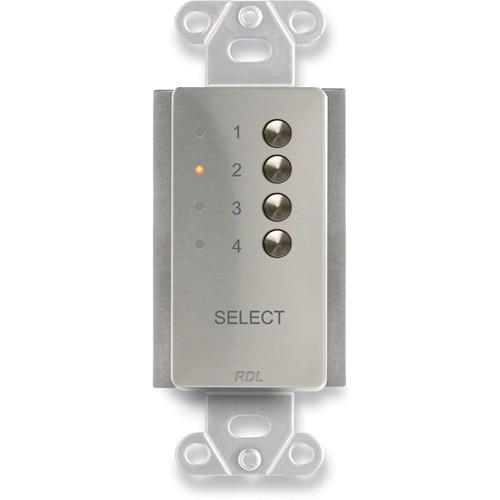

User Manual for RDL D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers Click to enlarge the picture
Contents of the user manual for the RDL D-RC4RU 4-Channel Remote Control for
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL D-RC4RU 4-Channel Remote Control for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The silver D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers from RDL is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The DB-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The DB-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.
The front panel of the DB-RC4RU features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the DB-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the DB-RC4RU is capable of driving two RU-SX4As simultaneously. - Remote Selection of 4 Audio Sources
- Single-Button Selection for Each Source
- Remote Selection of Balanced Audio Sources
- 3-pair (or 6 conductor) Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL Remote Controls
UPC: 813721015679 In the Box RDL D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers (Silver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-RC4RU Specs | Selector Push Buttons | 4x Momentary push buttons (1 for each channel) | | Indicators | 4x Red LEDs (indicated channel selected) | | Connection | Detachable terminal block; Interfaces directly with RDL RU-SX4A | | Operating Environment | Ambient Operating Environment: 32° to 131°F (0° to 55°C) | | Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA | | Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes | | Dimensions (H x W x D) | 4.110 x 1.720 x 0.980" (10.44 x 4.37 x 2.48 cm) | | | | Package Weight | 3.63 lb | | Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.4" |
