User Manual for RDL D-RLC10 Remote Level Control, Rotary Click to enlarge the picture
Contents of the user manual for the RDL D-RLC10 Remote Level Control, Rotary
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL D-RLC10 Remote Level Control, Rotary contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

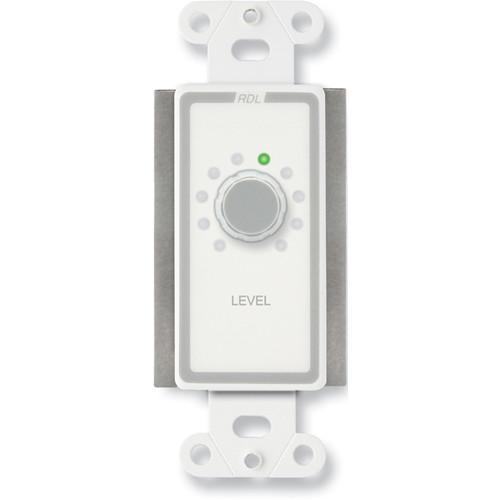

Product description The white D-RLC10 Remote Level Control from RDL is a rotary remote level control that provides user adjustment at a single or multiple locations. This control is designed to fit any standard single-gang electrical box. The optical encoder technology allows continuous knob rotation with a comfortable adjustment rate and long-term, trouble-free, and noise-free operation. The control directly connects to any RDL, VCA, and OEM equipment with 0 to 10 VDC ramp inputs.
The D-RLC10 may be connected to a ramp-controlled VCA using a single-pair shielded audio cable or unshielded cable. A rear-panel switch configures the control as the MASTER. The MASTER mode causes this control to drive the 0 to 10 VDC ramp output and to monitor its pulse terminals in case any other -RLC10 controls are connected.
As many as nine additional -RLC10 controls may be wired in parallel with the MASTER control using UTP cable (CAT5, CAT6, or equivalent). The rear-panel MODE switch on each additional remote control is set to SLAVE mode. Operation is the same for a single control, or for each control connected in a multiple control point installation. The 0 to 10 VDC ramp voltage is incremented up or down when the front-panel knob is rotated. Acceleration is provided so the rate of change is faster when the knob is rotated more rapidly, yielding a responsive feel and rapid elimination of acoustic feedback. The LED ring display encircling the control knob operates as a virtual pointer. When the D-RLC10 is not being adjusted, its display switches to a dim intensity to avoid being a visual distraction. The display returns to a bright intensity during adjustment. In the event of power loss, internal non-volatile memory stores the last level value. When power is restored, the 0 to 10 V output will return to the operating level present when power was lost.
Multiple -RLC10 controls set to the SLAVE MODE may be connected to an RDL RU-VCA2A or RU-VCA6A, utilizing the VCA as the ramp generator. This connection is also possible with OEM equipment accepting open-collector pulses that are compatible with the D-RLC10 output pulse rate and width. - Single or multiple control locations
- Visual level display of operating level
- Display is bright during adjustment and dims after adjustment
In the Box RDL D-RLC10 Remote Level Control, Rotary (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-RLC10 Remote Level Control, Rotary in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-RLC10 Specs | Level Control | Optical rotary encoder | | Rotary Encoder | 5 Rotations (slow rotation, no acceleration)
3 Rotations (medium rotation, with acceleration)
1 Rotation (fast rotation counterclockwise) | | Connector | 1 x 5-position terminal block | | LED Indicators | 10 x power | | Power Requirement | 24 VDC @ 50 mA, Ground-referenced | | Mounting | Mounts in standard US electrical box | | Dimensions (H x W x D) | 4.11 x 1.31 x 0.98" (10.44 x 3.33 x 2.49 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 3.63 lb | | Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.42" |
