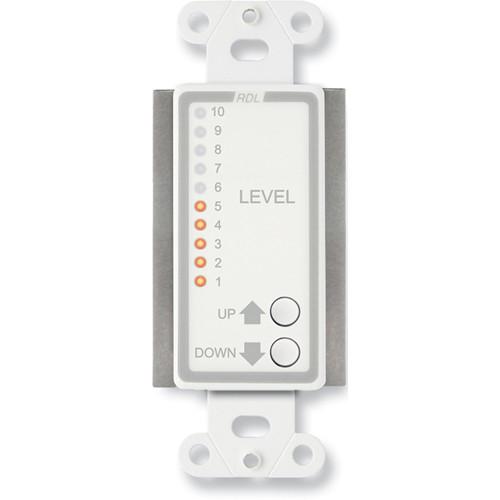

Product description The white D-RLC2 Remote Level Control, Ramp from RDL is a remote level control panel designed for RDL control modules. The D-RLC2 has two pushbuttons each associated with a LED. Pushing each button sends the appropriate signal back to the RDL control module. It can be installed in a standard US one-gang electrical box. The remote control is constructed on a steel frame. The electronics are fully protected within the rear enclosure. Connections are made through a rear panel detachable terminal block.
The D-RLC2 panel has a 10-segment LED display, which provides a visual indication of the level setting. The linearity of the display is tailored to produce indications consistent with the audible level. In systems where several control/level indication locations are needed, multiple -RLC2's may be connected to a single RDL control module. Push buttons are long-life switches mounted to provide protection from excessive frontal force. - 10-Segment visual level display
- UP and DOWN momentary pushbuttons
In the Box RDL D-RLC2 Remote Level Control, Ramp (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-RLC2 Remote Level Control, Ramp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-RLC2 Specs | Ramp Input | 0 to 10 VDC | | Connections | Detachable terminal block | | Push Buttons | 1 x UP
1 x DOWN | | Connectors | 5 x Screw terminal block, power and control | | Power Requirement | Ground-referenced, 24 VDC @ 75 mA | | LED Indicators | 10 x Level indicator | | Ambient Operating Temperature | 0 to 55°C (32 to 13°F) | | Mounting | Mounts in standard US electric box | | Dimensions (H x W x D) | 4.11 x 1.72 x 1.66" (10.43 x 4.37 x 4.21 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
