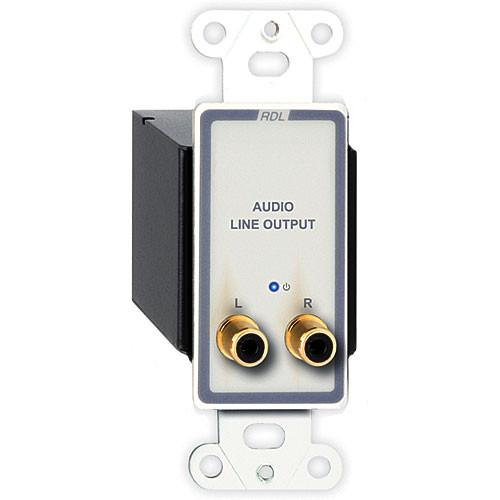

User Manual for RDL D-TPR2A Active RCA Stereo Audio Output over Dual RJ45 Receiver Module Click to enlarge the picture
Contents of the user manual for the RDL D-TPR2A Active RCA Stereo Audio
- Product category: Modules & Cards RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Modules & Cards
|
User manual for the RDL D-TPR2A Active RCA Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The D-TPR2A Active RCA Stereo Audio Output over Dual RJ45 Receiver Module from RDL is a CAT5 to RCA phono receiver module. The The D-TPR2A features a white front-panel laminate with gray lettering that matches RDL Decora-style remote controls. The D-TPR2A module features two RCA phono jack outputs, one for the left channel output and one for the right channel. The audio signals received from pairs B and C of the twisted pair cable are buffered to drive the output jacks at the standard -10 dBV consumer level.
This module receives signal from only two cable pairs, so the D-TPR2A module has a second RJ45 jack to connect cables to additional receiver modules. A separate single-pair receiver may be chained to the second RJ45 jack. In addition to completing the reception of signals from all three FORMAT-A pairs, additional receivers may be connected to the same twisted pair feed. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks.
The D-TPR2A may be powered directly from a 24 VDC power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The D-TPR2A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. This module is designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The D-TPR2A unit can be mounted in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. - Two unbalanced -10 dBV phono jack audio outputs
- L (Left) output from pair B, R (Right) from pair C
- Signal and Power pair pass-through on RJ45s
- Remote powering through twisted pair cable
- Fused local power feeds all connected modules
- Local power input on terminal block
- Blue LED indicates module is powered
- Daisy-chain with additional format-A receivers (sold separately)
- Precision active balanced circuitry
UPC: 813721013682 In the Box RDL D-TPR2A Active RCA Stereo Audio Output over Dual RJ45 Receiver Module (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-TPR2A Active RCA Stereo Audio Output over Dual RJ45 Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-TPR2A Specs | Input Connections | 2 x RJ45
Format A Single Pair Used: Switch-selectable A, B, or C Format A Output: RJ45 | | Output Level | 100 ohms, unbalanced | | Output Connection | 2 x RCA Phono | | Frequency Response | 10 Hz to 50 kHz (±0.1 dB) | | THD & Noise | < 0.005% | | Noise | Below +4 dBu: < -90 dB | | Crosstalk | < 90 dB (1 kHz)
<75 dB (20 Hz to 20 kHz) | | Headroom | Above +4 dBu: > 18 dB | | CMRR | > 80 dB (50 to 150 Hz) | | Indicators | Power In | | Power Connections | Detachable terminal block, or through RJ45 twisted pair | | Power Requirements | 24 VDC @ 45 mA plus connected loads | | Ambient Operating Environment | 32 to 131°F (0 to 55°C) | | Mounting Depth | Mounting Box Minimum Depth: 2.4" (6.1 cm) | | Dimensions | 1.6 x 4.11 x 1.89" (4.8 x 4.06 x 4.8 cm) | | Weight | 0.245 lb (0.11 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.9 x 4.4 x 2.3" |
