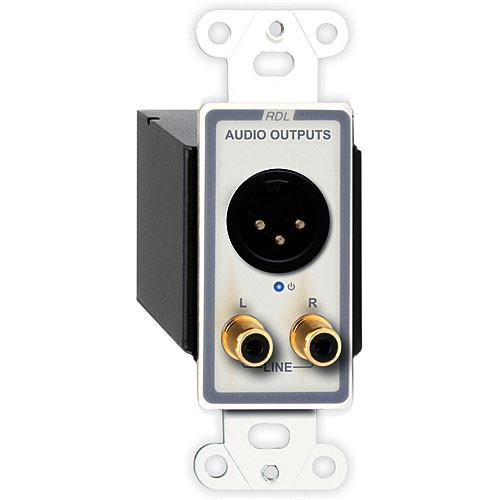

User Manual for RDL D-TPR3A Active Triple Pair XLR and RCA Stereo Audio Output over RJ45 Receiver Module Click to enlarge the picture
Contents of the user manual for the RDL D-TPR3A Active Triple Pair XLR
- Product category: Modules & Cards RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Modules & Cards
|
User manual for the RDL D-TPR3A Active Triple Pair XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The D-TPR3A Active Triple Pair XLR and RCA Stereo Audio Output over RJ45 Receiver Module from RDL is a three-pair audio receiving module compatible with RDL Format-A twisted pair products. The D-TPR3A features a white front-panel laminate with gray lettering that matches RDL Decora-style remote controls. The D-TPR3A module features an XLR audio output and two RCA phono jack outputs, one for the left channel and one for the right channel. The audio signal received from pair A of the RJ45 input jack feeds the XLR audio output jack. The output level from the XLR jack is set to either Mic or Line level during installation using a rear-panel switch. The audio signals received from pairs B and C of the twisted pair cable are buffered to drive the RCA output jacks at the standard -10 dBV consumer level.
The D-TPR3A module can access signals from all three cable pairs, and additional receivers may be connected to the same twisted pair feed. The bridging input circuits used in all Format-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The D-TPR3A can be powered directly from a 24 VDC power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules.
The D-TPR3A can be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. This module is designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The D-TPR3A model can be mounted in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. - Balanced Mic or Line Level XLR output
- Switch-selectable output level on rear panel
- Two unbalanced -10 dBV Phono jack audio outputs
- XLR from Pair A; L from Pair B; R from Pair C
- Remote powering through twisted pair cable
- Fused local power feeds all connected modules
- Local power input on terminal block
- Blue LED indicates module is powered
- Utilizes all three Format-A pairs
- Active Balanced Circuitry
UPC: 813721013705 In the Box RDL D-TPR3A Active Triple Pair XLR and RCA Stereo Audio Output over RJ45 Receiver Module (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-TPR3A Active Triple Pair XLR and RCA Stereo Audio Output over RJ45 Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-TPR3A Specs | Input Connections | RJ45
Format A Single Pair Used (2): B (Left); C (Right) Format A Output: RJ45 | | Output | Balanced: 150 ohms
Unbalanced: 100 ohms | | Output Connections | 2 x RCA Phono jack
1 x XLR (balanced Mic or Line) | | Output Level | XLR: -45 dBu Mic or +4 dBu Line Level, switch-selectable on rear panel
RCA phono: -10 dBV | | Frequency Response | 10 Hz to 50 kHz (± 0.1 dB) | | THD & Noise | < 0.005% | | Noise | Below +4 dBu: < -90 dB | | Crosstalk | < 90 dB (1 kHz)
< 75 dB (20 Hz to 20 kHz) | | Headroom | Above +4 dBu: > 18 dB | | CMRR | > 80 dB (50 to 150 Hz) | | LED Indicator | Power In, blue | | Power Connections | 1 x RJ45; detachable terminal block | | Power Requirements | 24 VDC @ 45 mA plus connected loads | | Ambient Operating Environment | 32 to 131°F (0 to 55°C) | | Minimum Depth | Mounting Box Minimum Depth: 2.4" (6.1 cm) | | Dimensions | 1.6 x 4.11 x 1.89" (4.8 x 4.06 x 4.8 cm) | | Weight | 0.245 lb (0.11 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.2" |
