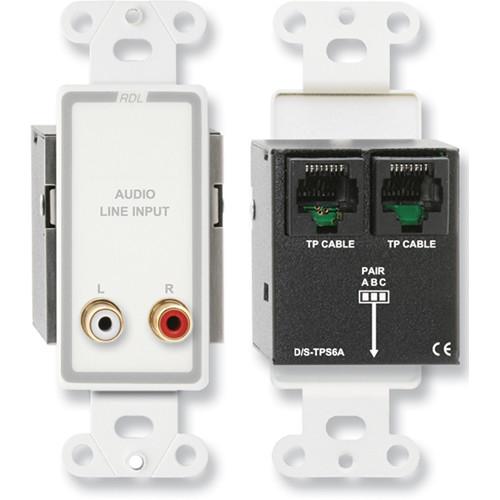

User Manual for RDL D-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks Click to enlarge the picture
Contents of the user manual for the RDL D-TPS6A Format-A Passive Single-Pair Sender
- Product category: Video Extenders & Repeaters RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Video Extenders & Repeaters
|
User manual for the RDL D-TPS6A Format-A Passive Single-Pair Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The white/gray D-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks from RDLis a single-pair audio sending module compatible with RDL Format-A twisted pair products. Its front panel features two gold plated phono jacks intended for stereo consumer line level audio sources. A studio quality transformer provides isolation between the audio source and the RJ-45 TP CABLE. It is a single-pair sender, which feeds the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ-45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. In addition, two other single-pair senders may be chained to a TP CABLE jack or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair A, B or C. It must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. It is a passive module that does not require power to operate. In addition, if power is present on a cable connected to a TP CABLE jack, then that power is passed through, to the modules connected to the other TP CABLE jack. - Stereo audio input combined to mono output
- Switch-selects which RJ-45 Pair (A, B or C) is fed
- Signal and power pair pass-through between TP CABLE RJ-45 jacks
- Passive circuitry does not require power
- Galvanic isolation through a studio quality transformer
- Daisy chain with single-pair or two-pair Format-A senders
UPC: 813721013903 In the Box RDL D-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks (White/Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-TPS6A Format-A Passive Single-Pair Sender with Dual RCA Jacks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-TPS6A Specs | Input | 2 x RCA jacks, unbalanced stereo combined to mono | | Input Connector | RJ45 TP CABLE, Format-A | | Input Level | -10 dBV, +22 dBu maximum | | Signal Pair | Switch-selectable A, B, or C (rear panel switch), Format-A | | Output | RJ-45 TP CABLE RDL TP, Format-A | | Frequency Response | 20 Hz to 20 kHz (±0.5 dB) | | Total Harmonic Distortion (THD) | up to 0.1% (50 Hz to 20 kHz)
up to 0.001% (1 kHz typ) | | Power Requirement | Passive | | Compliance | RoHS, CE | | Dimensions (W x H x D) | 1.60 x 4.11 x 1.89" (40.64 x 104.39 x 48.01 mm) | | | | Package Weight | 0.515 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
