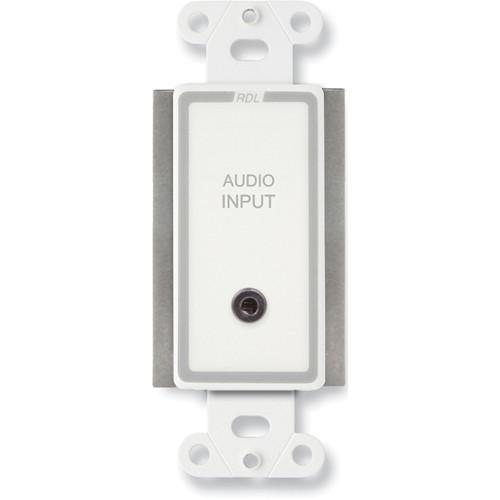

User Manual for RDL D-TPS8A Active Two-Pair Sender with Format-A & Mini-Jack Inputs Click to enlarge the picture
Contents of the user manual for the RDL D-TPS8A Active Two-Pair Sender with
- Product category: Video Extenders & Repeaters RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Video Extenders & Repeaters
|
User manual for the RDL D-TPS8A Active Two-Pair Sender with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The white D-TPS8A Active Two-Pair Sender from RDL is a two-pair audio sending module compatible with RDL Format-A twisted pair products. This module is designed to be mounted in wall boxes, cabinets, or other enclosures that allow users to connect audio sources. It features a white front-panel laminate with gray lettering that matches RDL Decora-style remote controls. The D-TPS8A module features a stereo mini-jack input on the front panel. The input is designed to receive standard -10 dBV consumer-level signals from sources such as a computer or personal media player. The input signals are amplified using studio-quality preamplifiers optimized for normal operating levels. The buffered left and right inputs are routed to output cable pairs B and C. This module drives only two cable pairs and therefore it accepts signals and power from one mic-level or line-level Format-A single-pair sender. One single-pair sender may be chained with the module. A single-pair sender must be set to feed pair A if it is connected together with the D-TPS8A Sender. The D-TPS8A module has a Format-A input on the rear panel. This RJ45 input receives left and right signals from preceding senders and sums them together with the local mini-jack input. This allows multiple D-TPS8A modules to be connected in series with all the mini-jack inputs remaining active. The D-TPS8A Sender is remotely powered through the twisted pair cable from any other module, signal distributor, or RDL power inserter connected to the same twisted pair cable. There are no illuminated indicators that could be distracting in dark locations, such as a hotel room. The unit features automatic fused power, hum rejection, low noise, and low distortion for designers and installers looking to work with twisted pair products. Note: The sender should be mounted in an RDL WB-1U Wall Box or equivalent (not included). - Unbalanced -10 dBV mini-jack audio input
- Rear-panel RJ45 input for connecting additional TPS8A senders
- Left (L) input feeds pair B; right (R) feeds pair C
- Signal and power pair pass-through on RJ45 jacks
- Remote powering through a twisted pair cable
- Daisy-chain with single-pair senders
- Studio-quality precision active balanced circuitry
In the Box RDL D-TPS8A Active Two-Pair Sender with Format-A & Mini-Jack Inputs (White) Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL D-TPS8A Active Two-Pair Sender with Format-A & Mini-Jack Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL D-TPS8A Specs | Inputs | Two
10 kΩ unbalanced, stereo; Format-A | | Input Connections | Mini jack (front panel); RJ45 (rear panel) | | Input Level | -10 dBV; +10 dBV maximum | | Twisted Pair | Format-A Signal Pairs Used: 2, B (Left), C (Right) | | Gain | 12 dB | | Output | RDL TP Format-A | | Output Connection | RJ45 | | Frequency Response | 20 Hz to 50 kHz (±0.5 dB) | | THD + N | <0.1% (20 Hz to 50 kHz); <0.01% (1 kHz) | | Noise | Below +4 dBu: <-85 db
<-75 dB with up to 10 TPS8A modules connected | | Crosstalk | <85 dB (1 kHz); <75 dB (20 Hz to 20 kHz) | | Headroom | Above +4 dBu: >20 dB | | Power Connections | RJ45 | | Power Requirement | 24 VDC @ 30 mA | | Ambient Operating Temperature | 32 to 131°F (0 to 55°C) | | Dimensions (DxWxH) | 1.33 x 1.72 x 4.11" (3.37 x 4.36 x 10.43 cm) | | Weight | 0.39 lb (0.17 kg) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
