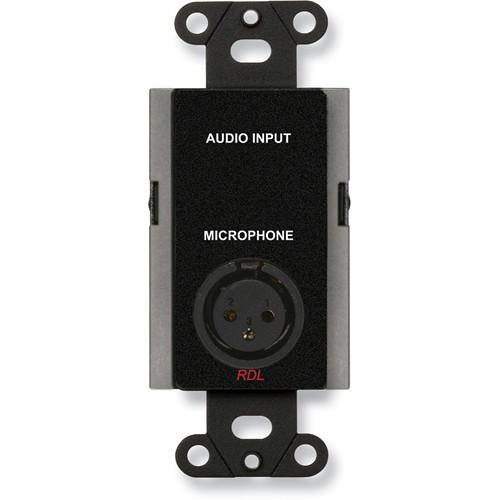

User Manual for RDL DB-J1 Microphone Input Assembly Click to enlarge the picture
Contents of the user manual for the RDL DB-J1 Microphone Input Assembly
- Product category: Wall Plates & Installation Boxes RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Wall Plates & Installation Boxes
|
User manual for the RDL DB-J1 Microphone Input Assembly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The black DB-J1 Microphone Input Assembly from RDL can be mounted in cabinets or most standard US single-gang electrical boxes. It also directly fits into RDL back boxes, or can be mounted on US or international walls via the WB-1U Universal Wall Box (available separately). Connections to the female XLR jack on the front panel can be made via the rear barrier block. Four output terminals are provided: case ground, shield (XLR pin 1), + (XLR pin 2), and - (XLR pin 3). A jumper may be installed between the shield connection and the case ground if desired. The back of the assembly is finished with a metal enclosure, clearly labeled for easy installation. - Wall mountable microphone input panel
- XLR input connector with gold contacts
- Barrier block wiring connections
- Ground-lift terminals on barrier block
In the Box RDL DB-J1 Microphone Input Assembly (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-J1 Microphone Input Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-J1 Specs | Input Connector | XLR female gold contacts | | Output Connector | Barrier block | | Output Connections | CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) | | Power Requirement | Passive | | Mounting Box | Dimensions (W / D): 1.80" (4.57 cm) / Depth: 1.75" (4.45 cm) | | Dimensions (W x H x D) | 1.70 x 4.13 x 2.15" (4.32 x 10.49 x 5.47 cm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
