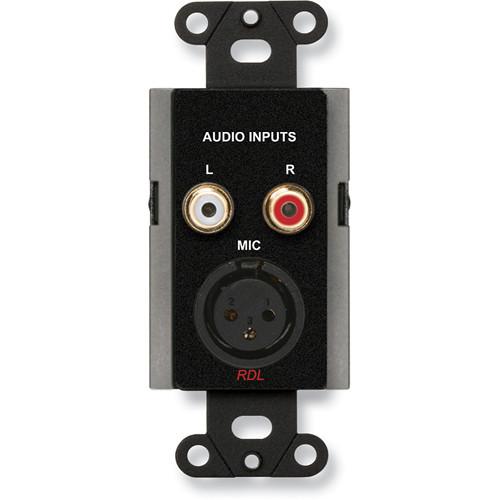

Product description The black DB-J3 Wall Mount Mic/Line Input Panel Assembly from RDL is a complete audio input panel assembly. Connections to the female XLR jack on the front panel can be made via the rear barrier block. The front panel features 2 phono jacks intended for mono or stereo consumer level sources. The left and right channels are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10kΩ or higher input impedance line level module or equipment inputs.
The input panel fits directly into RDL back boxes to be mounted in cabinets or on US or international walls (via the WB-1U Universal Wall Box). It can also be mounted directly into cabinets or most standard US single-gang electrical boxes. The back of the input panel is finished with a metal enclosure that is clearly labeled for easy installation. - Wall mounted audio inputs
- XLR microphone input with gold contacts
- Gold plated phono jack line inputs
- Hum cancellation on unbalanced line inputs
- Transformer isolation for unbalanced line inputs
- Balanced mono output for unbalanced mono or stereo line inputs
UPC: 813721015310 In the Box RDL DB-J3 Wall Mount Mic/Line Input Panel Assembly (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-J3 Wall Mount Mic Line Input Panel Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-J3 Specs | Input Connectors | 2 x Phono jacks with gold contacts, 1 x XLR female with gold contacts | | Output Connector | Terminal block | | Output Connections | Line: +, -, SHIELD
Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) | | Frequency Response | Line in: 30 Hz to 20 kHz (±1 dB) | | Power Requirement | Passive | | Mounting Box | Dimensions Requirement: W: 1.80" (4.57 cm), D: 1.75" (4.45 cm) | | Dimensions (W x D x H) | 1.70 x 2.15 x 4.13" (4.32 cm x 5.47 x 10.49 cm) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 4.9 x 4.4 x 2.3" |
