Product description The silver DB-RC4ST 4-Channel Remote Control for ST-SX4 4x1 Audio Switcher from RDL is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The DB-RC4ST connects directly to the POWER and CTRL terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

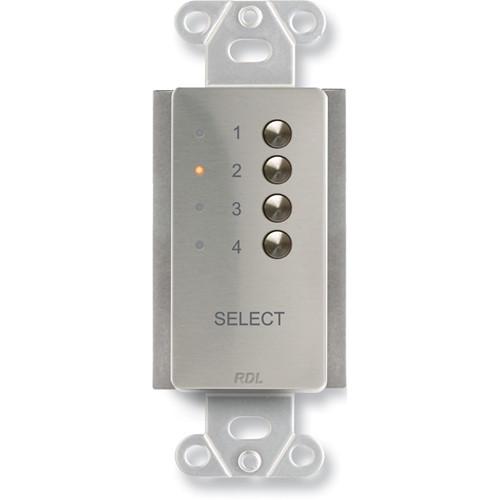

The front panel of the DB-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other three buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the SLAVE output from the ST-SX4 is used to drive the CTRL input of an additional ST-SX4. - Remote Selection of 4 Audio Sources
- Single-Button Selection for Each Source
- Remote Selection of Unbalanced Audio Sources
- 3-Conductor Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL Remote Controls
In the Box RDL DB-RC4ST 4-Channel Remote Control for ST-SX4 4x1 Audio Switcher (Silver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-RC4ST 4-Channel Remote Control for ST-SX4 4x1 Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-RC4ST Specs | Selector Push Buttons | 4x Momentary push buttons (1 for each channel) | | Indicators | 4x Red LEDs (indicated channel selected) | | Connection | Detachable terminal block; Interfaces directly with RDL ST-SX4 | | Operating Environment | Ambient Operating Environment: 32° to 131°F (0° to 55°C) | | Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA | | Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes | | Dimensions (H x W x D) | 4.110 x 1.720 x 0.980" (10.44 x 4.37 x 2.48 cm) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
