User Manual for RDL DB-RLC10K Remote Level Control Click to enlarge the picture
Contents of the user manual for the RDL DB-RLC10K Remote Level Control
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL DB-RLC10K Remote Level Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

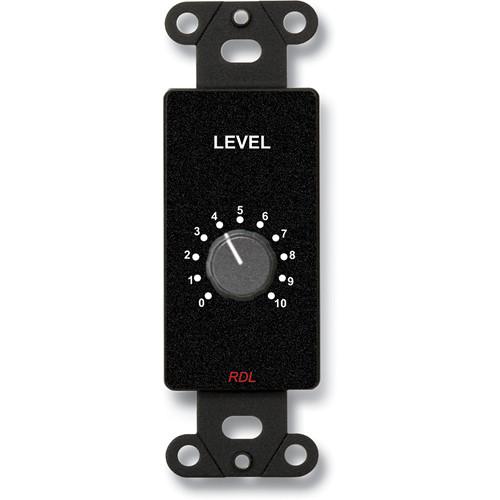

Product description The black DB-RLC10K Remote Level Control from RDL is used with VCA modules where levels are to be controlled from a single remote location. The remote level control contains a long life 10kΩ potentiometer for setting the control voltage. Its front panel has 10 graphic increments which provide a visual indication of the level setting. This remote level control features a standard RDL white front panel and is offered in stainless steel construction. It connects with the VCA modules via the 3-wire control input. - Remote level control panel
- Single-turn rotary control
- Direct connection to RDL VCA modules
- Stainless steel construction
UPC: 813721015129 In the Box RDL DB-RLC10K Remote Level Control (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-RLC10K Remote Level Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-RLC10K Specs | Resistance | 0 to 10 kΩ, linear | | Mounting | Mounts in standard US electrical box (available separately) | | Ambient Operating Environment | 14 to 131°F (-10 to 55°C) | | Dimensions (H x W x D) | 4.1 x 1.3 x 1.6" (10.4 x 3.3 x 4.0 cm) without knob
4.1 x 1.3 x 2.2" (10.4 x 3.3 x 5.5 cm) with knob | | Weight | 0.2 lb (0.09 kg) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 2.7 x 2.0 x 1.2" |
