User Manual for RDL DB-RLC3 Remote Level Control, Preset Level Click to enlarge the picture
Contents of the user manual for the RDL DB-RLC3 Remote Level Control, Preset
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL DB-RLC3 Remote Level Control, Preset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

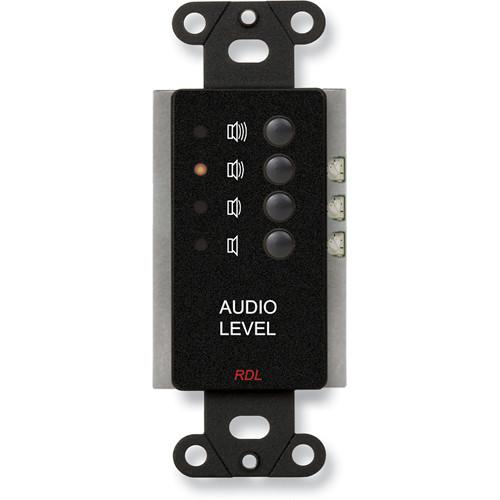

Product description The black DB-RLC3 Remote Level Control, Preset Level from RDL is designed to directly interface with control modules which feature a 0 to 10 VDC control input utilizing an external 10kΩ resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The DB-RLC3 has four momentary push buttons, each corresponding to one of four levels selected.
In a typical installation, the DB-RLC3 is wired to a RDL VCA. The DB-RLC3 runs from the same power supply as the VCA. When power is applied, the unit defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the device is set to the HIGH position, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable using trim pots on the side of the level control. The adjustments are concealed once the unit is installed.
The DB-RLC3 is constructed on a durable polycarbonate-faced, powder-coated steel panel. Electronics are housed in a metal enclosure featuring a rear panel detachable terminal block for easy wiring. - Four momentary pushbuttons, each corresponding to one of four levels selected; LOW, MIN, NORM, and HIGH
- Once installed, the adjustment trimmers are concealed from the user
In the Box RDL DB-RLC3 Remote Level Control, Preset Level (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-RLC3 Remote Level Control, Preset Level in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-RLC3 Specs | Controls | Four Momentary Push Buttons:
High: 10 kΩ, 0 dB
Norm: Adjustable, -3 dB to -30 dB
Low: Adjustable, -5 dB to -40 dB
Min: Adjustable, -10 dB to Off | | Connections | Detachable terminal block | | Power Requirement | Ground-referenced, 24 V @ 30 mA | | Mounting | Mounts in standard US electric box | | Ambient Operating Temperature | 32 to 122° F (0 to 50° C) | | Dimensions (H x W x D) | 4.1 x 1.6 x 1.3" (10.4 x 3.30 x 4.10 cm) | | Weight | 0.22 lb (0.1 kg) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
