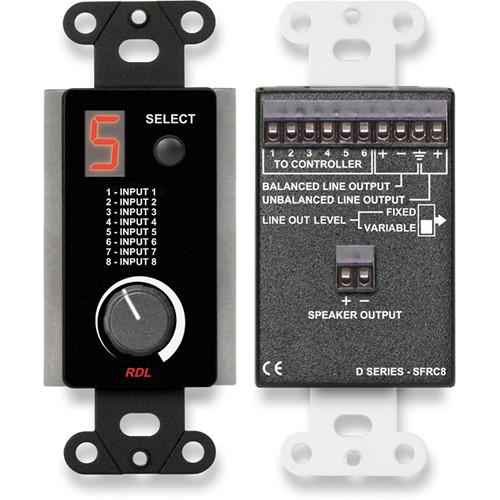

Product description The DB-SFRC8 Room Control Station from RDL is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5W RMS into an 8Ω speaker.
A rear-panel switch set during installation causes the balanced line-level output to produce a fixed +4dBu or a variable level adjusted by the front-panel control. The unbalanced output is 12 dB below the balanced output level.
Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation.
The control station is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. It is suitable for office distributed sound systems with background music and a paging source. - Single room listening station with in-wall controls
- Source selection pushbutton
- Volume adjustment using a single-turn control
- Selection from up to 8 audio sources
- Line output switchable fixed or variable
- Variable output follows front-panel level control
- 3.5W RMS audio amplifier into 8Ω and 6.5W into 4Ω
- High-efficiency Class D operation
- Thermal and short-circuit protection
- Speaker output connection on detachable terminal block
- Mounts in-wall using US single gang electrical box or RDL WB-1U (both available separately)
- Compatible with other RDL wall plates and controls
- For office distributed sound systems with music and paging
In the Box RDL DB-SFRC8 Room Control Station for SourceFlex Distributed Audio System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-SFRC8 Room Control Station for SourceFlex Distributed Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-SFRC8 Specs | Input | 10-position detachable terminal block | | Display | 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel) | | Selector Controls | Momentary button channel select | | Gain Adjustment | Single-turn audio taper (front-panel) | | Frequency Response | 20 Hz to 20 kHz (Line level, ±0.1 dB)
40 Hz to 20 kHz (Speaker, ±1 dB) | | THD + N | < 0.1% (Line level, 20 Hz to 20 kHz)
< 0.25% (Speaker, 1 kHz) | | Noise | < -85 dB (Line level, below +4 dBu)
< -80 dB (Speaker, below 1 W RMS) | | Control Signal | DC (Display Ramp and Control conductors between remote listening station and controller) | | Line Outputs | 2 x +4 dBu balanced, -10 dBV unbalanced, nominal | | Output Power | 3.5 W RMS (maximum, into 8 Ω)
6.5 W RMS (maximum, into 4 Ω) | | Power Requirement | 24 VDC @ 30 mA; 55 mA (1/8 power; normal voice or music)
225 mA (3.5 W into 8 Ω), supplied from SourceFlex controller | | Ambient Operating Environment | 32 to 104°F (0 to 40°C) maximum
68°F (20°C) recommended | | Dimensions (H x W x D) | 4.13 x 1.70 x 2.05" (10.49 x 4.32 x 5.21 cm) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
