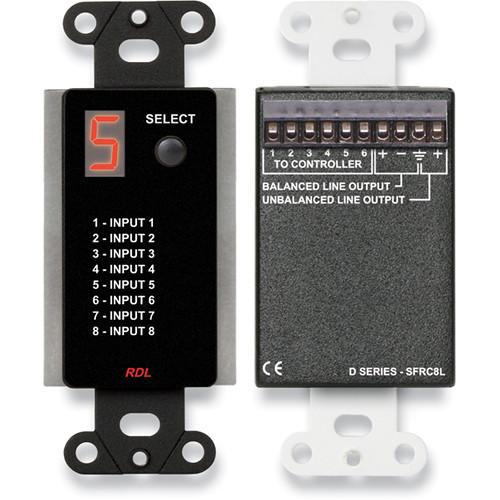

Product description The DB-SFRC8L Audio Selector from RDL is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The balanced line output level is +4dBu nominal and the unbalanced output is -10dBV.The audio selector is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. It is suitable for office distributed sound systems with background music and a paging source. - Single room listening station with in-wall controls
- Source selection pushbutton
- Selection from up to 8 audio sources
- Mounts in-wall using US single gang electrical box or RDL WB-1U (both available separately)
- Compatible with other RDL wall plates and controls
- For office distributed sound systems with music and paging
In the Box RDL DB-SFRC8L Audio Selector for SourceFlex Distributed Audio System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-SFRC8L Audio Selector for SourceFlex Distributed Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-SFRC8L Specs | Input | 10-position detachable terminal block | | Display | 7-segment red LED (0 = off or paging; 1 through 8 = selected channel) | | Selector Controls | Momentary button channel select | | Frequency Response | 20 Hz to 20 kHz (Line level, ±0.1 dB) | | THD + N | < 0.1% (Line level, 20 Hz to 20 kHz) | | Noise | < -85 dB (Line level, below +4 dBu) | | Control Signal | DC (Display Ramp and Control conductors between remote listening station and controller) | | Line Outputs | 2 x +4 dBu balanced, -10 dBV unbalanced, nominal | | Power Requirement | 24 VDC @ 30 mA, Supplied from SourceFlex controller | | Ambient Operating Environment | 32 to 122°F (0 to 50°C) maximum
68°F (20°C) recommended | | Dimensions (H x W x D) | 4.13 x 1.70 x 2.05" (10.49 x 4.32 x 5.21 cm) |
