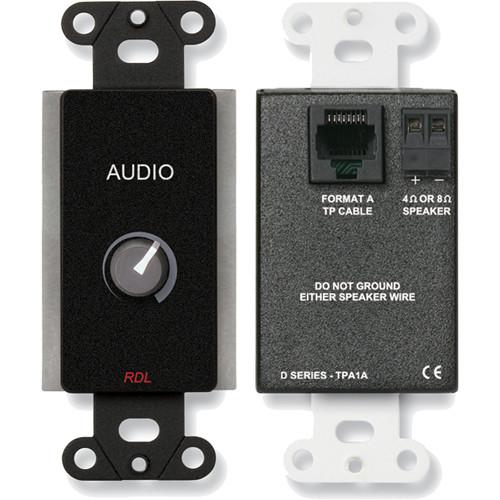

Product description The black DB-TPA1A 3.5W Audio Power Amplifier from RDL is a 2-pair audio amplifier compatible with the RDL Format A twisted pair products. Each D-TPA1A receives stereo audio and 24VDC power through a rear-panel RJ-45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA, which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.The DB-TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This Sleep mode remains active until the user turns up the output level.The output drives either a 4 or 8Ω speaker. The speaker cable connects to the module using a detachable terminal block. The front panel does not include any illuminated indicators, thereby making the DB-TPA1A Amplifier suitable for installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ-45.The DB-TPA1A Amplifier may be fed and powered from any RDL Format-A sender, and is useful in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).Use the DB-TPA1A Audio Power Amplifier wherever a single speaker, user-adjustable, wall-mounted amplifier is needed. It can be combined with other RDL Format-A products for a cost-effective, high-performance audio system. - 3.5W rms audio amplifier into 8Ω
- 6.5W rms audio amplifier into 4Ω
- Output drives 4 or 8Ω speaker
- Setting level to minimum activates energy-saving Sleep mode
- High-efficiency class D operation
- VCA level adjustment for scratch-free, long life
- Input and power connection on RJ-45
- Connects to format-A sender using a twisted-pair cable
- Powered from RDL twisted pair format-A sender
- Speaker output connection on detachable terminal block
- Compact all metal construction
- Thermal and short-circuit protection
UPC: 813721014016 In the Box RDL DB-TPA1A 3.5W Audio Power Amplifier (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DB-TPA1A 3.5W Audio Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-TPA1A Specs | Input | RDL format-A | | Input Connector | RJ-45 | | Gain | Adjustment: Single turn audio taper, VCA attenuator | | Frequency Response | 50 Hz to 20 kHz (+/- 1.5 dB) | | THD + N | < 0.1% (@ 1 kHz, 1 W) | | Noise | <-70 dB (below 1 W rms) | | CMRR | > 60 dB (50 Hz to 120 Hz) | | Output Power | 3.5 W rms (maximum into 8 Ω); 6.5 W rms (maximum into 4 Ω) | | Power Consumption | 45 mA (idle), 95 mA (1 W into 8 Ω), 150 mA (1 W into 4 Ω), 215 mA (3.5 W into 8 Ω) | | Sleep | Power Consumption: < 0.3 W
Enable: Active at audio gain <-60 dB | | Operating Environment | Maximum: 32 to 104°F (0 to 40°C)
Recommended: 68°F (20°C) | | Dimensions (H x W x D) | 4.1 x 1.7 x 2.1" (10.4 x 4.3 x 5.3 cm) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
