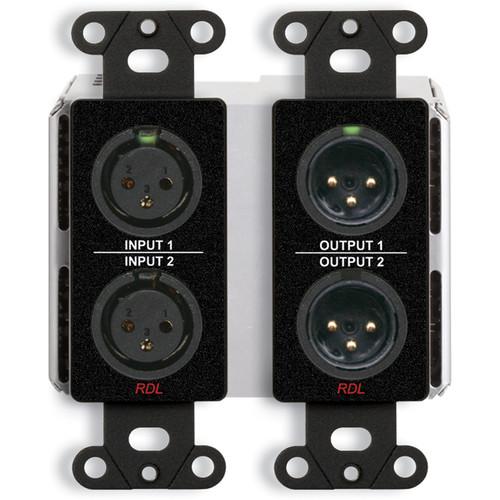

Product description The black DDB-BN22 2 x 2 Wall-Mounted Bi-Directional Mic/Line Dante Interface from RDL is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. Special software is not required to configure the DDB-BN22. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. The first switch enables or disables P48 phantom, second switch selects the mic or line gain range, and the third switch sets the gain. Each XLR output provides a switch to set the output to balanced professional line level or mic level.The DDB-BN22 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. It is PoE powered and is available with optional customized graphics.The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The two Dante audio channels are converted to balanced line level on front panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -20 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit.The valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DDB-BN22 features discrete mic preamplifiers for studio-quality fidelity and low-noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated Decora front plates. - Suitable for demanding applications and networked audio systems
- Dante network interface for two audio inputs and two audio outputs
- Inputs and outputs on XLR jacks on front panels
- Converts two standard mic or line audio sources to Dante network channels
- Converts two Dante network audio signals to mic or line level
- Special software not required for module setup
- Each input is switch-selectable for mic or line
- Switch-selectable mic gain: 40, 48, or 62 dB
- Switch-selectable 48 V Mic Phantom (P48)
- Switch-selectable line gain: Unity, 12, or 19 dB
- Each output is switch selectable for mic or line
- 24-bit analog to digital and digital to analog conversion
- RDL analog filtering for improved audio performance
UPC: 813721014719 In the Box RDL DDB-BN22 2 x 2 Wall-Mounted Bi-Directional Mic/Line Dante Interface (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DDB-BN22 2 x 2 Wall-Mounted Bi-Directional Mic Line Dante Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DDB-BN22 Specs | Network Connectors | RJ45 with link and speed indicators | | Ethernet Protocol | Digital Audio: Dante | | Transmission Rate | 100 Mb/s | | Sample Rates | 44.1 kHz, 48 kHz (default) | | Bit Depth | 24-bit | | Operating Level | Audio Operating Level: -20 dBFS = +4 dBu | | Reference Level | 0 dBFS = +24 dBu | | | | Inputs | 2 x XLR (female) | | Gain | Mic: 40 dB (Lo), 48 dB (Med), 62 dB (Hi)
Line: Unity (Lo), 8 dB (Med), 19 dB (Hi) | | Input Level | +4 dBu/-20 dBFS:
Mic: -36 dBu (Lo), -44 dBu (Med), -58 dBu (Hi)
Line: +4 dBu (Lo), -8 dBu (Med), -15 dBu (Hi)
Maximum:
Mic: -16 dBu (Lo), -24 dBu (Med), -38 dBu (Hi)
Line: +24 dBu (Lo), +12 dBu (Med), +5 dBu (Hi) | | Input Impedance | > 2.5 kOhms (Mic)
> 5 kOhms (Line) | | Phantom Power | P48, 48 VDC, switch-selectable
Standard for Phantom: IEC 61938: 2013 | | CAC Selectors | Selectors per Input: Phantom, Mic/Line, Gain | | Frequency Response | 20 Hz to 20 kHz (±0.5 dB) | | Equivalent Input Noise | -130 dBu (62 dB gain)
-132 dBu A-Weighted
Noise Below -20 dBFS (20 to 20 kHz):
Mic: < -72 dB (Lo), < -72 dB (Med), < -68 dB (Hi)
Line: < -72 dB (Lo), < -72 dB (Med), < -70 dB (Hi) | | THD+N | < 0.1% (20 Hz to 20 kHz, +4 dBu / -20 dBFS); 0.015% at 1 kHz (typ) | | CMRR | > 65 dB (50 to 120 Hz) | | Crosstalk | Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, maximum mic gain) | | | | Outputs | 2 x XLR (male) | | Output Level | Operating: +4
