RDL Decora-Style Active Loudspeaker, D Series

Search your instruction manual in PDF to download

User Manual for RDL Decora-Style Active Loudspeaker, D Series

Click to enlarge the picture
RDL Decora-Style Active Loudspeaker, D Series Contents of the user manual for the RDL Decora-Style Active Loudspeaker, D Series
  • Product category: Installed Speakers RDL
  • Brand: RDL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RDL Installed Speakers

RDL Decora-Style Active Loudspeaker, D Series RDL Decora-Style Active Loudspeaker, D Series
User manual for the RDL Decora-Style Active Loudspeaker, D Series contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RDL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!



Product description

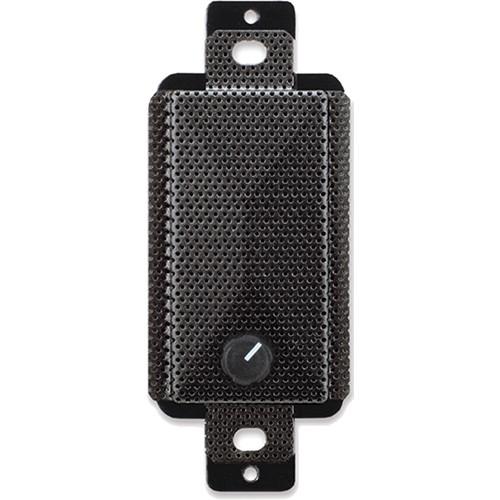

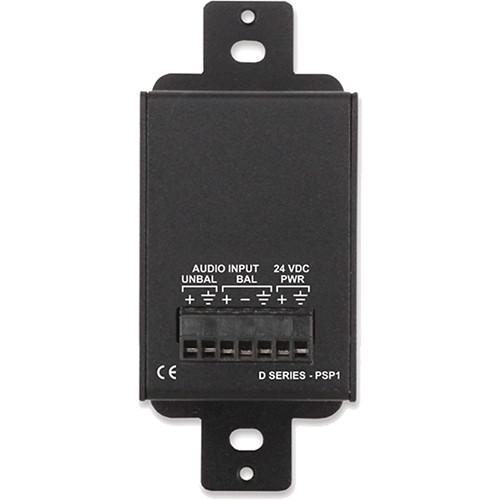

The RDL Active D-Series Loudspeaker features a black grill and is designed to deliver rich, detailed sound while in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block.

Amplification is provided by the built-in high-efficiency Class D power stage amplifier. The amplifier features audio filtering so the speaker will produce crisp quality audio. The high-efficiency Class D output stage amplifier produces negligible heat for all levels of voice or music modulation. The amplified output level is controlled by a front panel volume control. The loudspeaker includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

The built-in driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. The benefit of this enclosure is that it's designed to provide sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
  • Designed to provide quality audio for an ultra-compact size
  • 2 watt RMS audio amplifier
  • Compressor/limiter prevents clipping
  • Balanced +4 dBu input on the rear panel
  • Unbalanced -10 dBV input on the rear panel
  • Front panel gain adjustment
  • Acoustically optimized Decora enclosure
  • Fidelity comparable to larger drivers
  • Hemispherical dispersion mounted in wall or flat surface
UPC: 813721019141 In the Box RDL Decora-Style Active Loudspeaker, D Series (Black)
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the RDL Decora-Style Active Loudspeaker, D Series in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RDL DB-PSP1 Specs

    Inputs 30 kohm balanced or 10 kohm unbalanced
    Input Level +4 dBu nominal (balanced; -10 dBV nominal (unbalanced)
    Minimum Input Level -18 dBu (balanced, max. gain); -19 dBV (unbalanced, max. gain)
    Maximum Input Level +22 dBu
    Gain Adjustment Single turn audio taper (front panel)
    Maximum SPL 81 dB
    Frequency Range 150 Hz to 20 kHz, nominal
    CMRR > 50 dB (50 Hz to 120 Hz)
    Power Requirement 24 VDC @ 55 mA (idle); 100 mA (maximum), ground-referenced
    Ambient Operating Environment 0 to 40°F / -18 to 4°C maximum
    20°F / -7°C recommended
    Dimensions 3.6 x 4.6 x 2.1" / 9.2 x 11.7 x 5.4 cm
    Weight 0.4 lb / 0.2 kg
