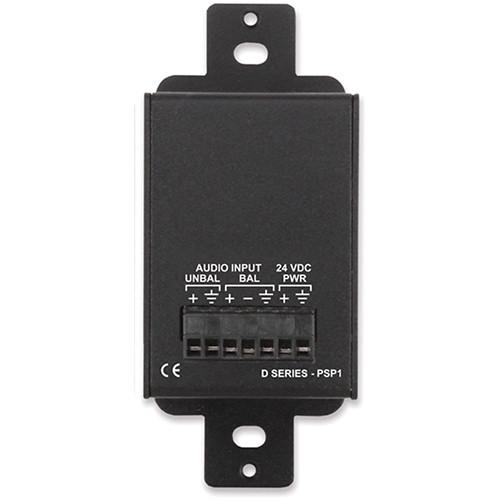

Product description The RDL Active D-Series Loudspeaker features a grey grill and is designed to deliver rich, detailed sound while in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block.
Amplification is provided by the built-in high-efficiency Class D power stage amplifier. The amplifier features audio filtering so the speaker will produce crisp quality audio. The high-efficiency Class D output stage amplifier produces negligible heat for all levels of voice or music modulation. The amplified output level is controlled by a front panel volume control. The loudspeaker includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

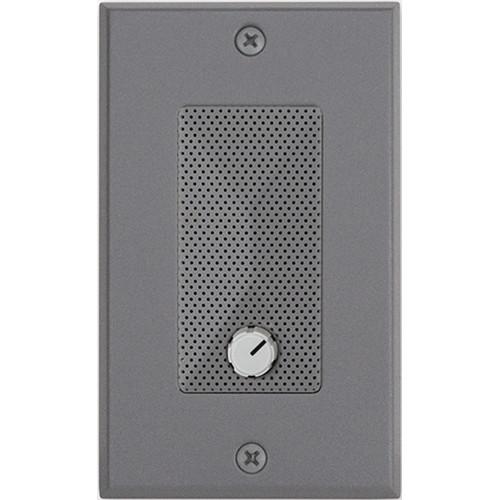

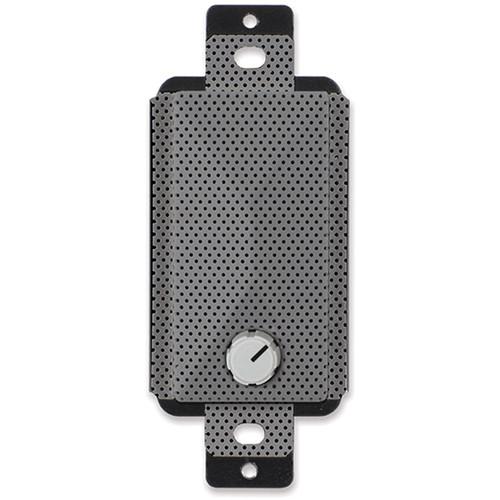

The built-in driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. The benefit of this enclosure is that it's designed to provide sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall. - Designed to provide quality audio for an ultra-compact size
- 2 watt RMS audio amplifier
- Compressor/limiter prevents clipping
- Balanced +4 dBu input on the rear panel
- Unbalanced -10 dBV input on the rear panel
- Front panel gain adjustment
- Acoustically optimized Decora enclosure
- Fidelity comparable to larger drivers
- Hemispherical dispersion mounted in wall or flat surface
In the Box RDL Decora-Style Active Loudspeaker, D Series (Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL Decora-Style Active Loudspeaker, D Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DG-PSP1 Specs | Inputs | 30 kohm balanced or 10 kohm unbalanced | | Input Level | +4 dBu nominal (balanced; -10 dBV nominal (unbalanced) | | Minimum Input Level | -18 dBu (balanced, max. gain); -19 dBV (unbalanced, max. gain) | | Maximum Input Level | +22 dBu | | Gain Adjustment | Single turn audio taper (front panel) | | Maximum SPL | 81 dB | | Frequency Range | 150 Hz to 20 kHz, nominal | | CMRR | > 50 dB (50 Hz to 120 Hz) | | Power Requirement | 24 VDC @ 55 mA (idle); 100 mA (maximum), ground-referenced | | Ambient Operating Environment | 0 to 40°F / -18 to 4°C maximum
20°F / -7°C recommended | | Dimensions | 3.6 x 4.6 x 2.1" / 9.2 x 11.7 x 5.4 cm | | Weight | 0.4 lb / 0.2 kg |
