User Manual for RDL Decora-Style Active Loudspeaker Format-A Series Click to enlarge the picture
Contents of the user manual for the RDL Decora-Style Active Loudspeaker Format-A Series
- Product category: Installed Speakers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Installed Speakers
 |
User manual for the RDL Decora-Style Active Loudspeaker Format-A Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

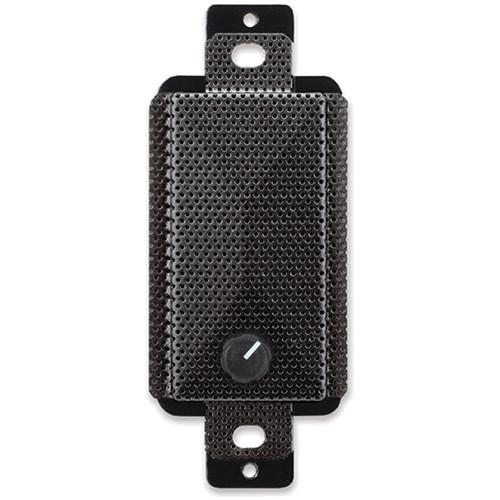

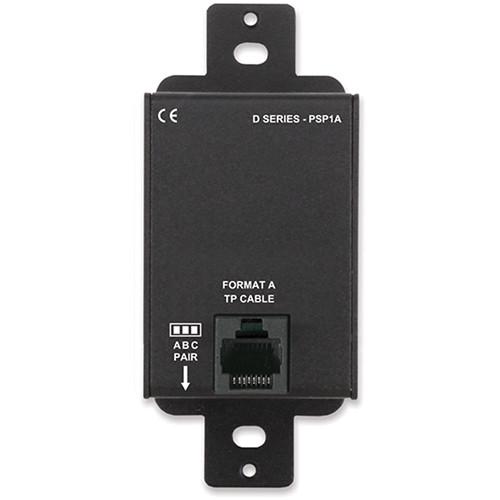

Product description The RDL Active Loudspeaker Format-A Series features a black grill and is designed to deliver rich, detailed sound while in Decora-style compatible wall or chassis mounts. The loudspeaker is a single-pair audio amplifier module compatible with RDL Format-A twisted pair products. The speaker is powered by its twisted pair cables, which also offer different channels to accommodate more than one sound source. A rear panel switch set during installation determines which of the three Format-A pairs are amplified.
Amplification is provided by the built-in high efficiency Class D power stage amplifier with audio filtering tailored to produce crisp quality audio. The high-efficiency Class D output stage amplifier produces negligible heat for all levels of voice or music modulation. The amplified output level is controlled by a front-panel volume control. The loudspeaker features a built-in analog compressor/limiter that makes higher sound output levels possible without clipping.
The built-in driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. The benefit of this enclosure is that it's designed to provide sonic presence within an extended frequency range that would normally be expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall. - Designed to provide quality audio for an ultra-compact size
- 2 watt RMS audio amplifier
- Compressor/limiter prevents clipping
- Connects to Format-A Sender using twisted-pair cable
- Powered from RDL twisted pair Format-A sender
- Front panel gain adjustment

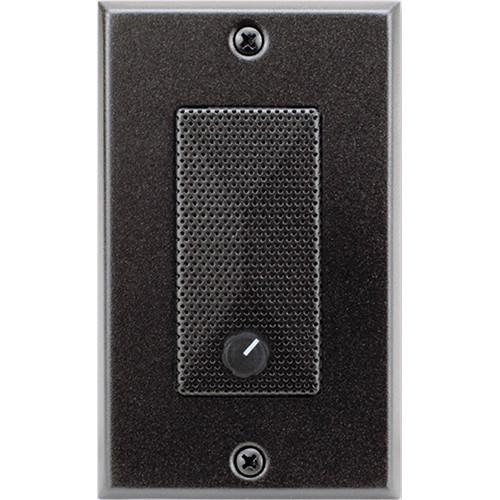

- Acoustically optimized Decora enclosure
- Fidelity comparable to larger drivers
- Hemispherical dispersion mounted in wall or on a flat surface
UPC: 813721019189 In the Box RDL Decora-Style Active Loudspeaker Format-A Series (Black) Limited 3-Year Warranty Brochure PDF 2.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL Decora-Style Active Loudspeaker Format-A Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DB-PSP1A Specs | Input | 1 x RDL-Format A | | Input Connection Type | RJ45 | | Selectable Output Formats | Switch-selectable A, B, or C (rear panel) | | Gain Adjustment | Single-turn audio taper (front panel) | | Maximum SPL | 81 dB | | Frequency Range | 150 Hz to 20 kHz, nominal | | CMRR | > 80 dB (50 Hz to 120 Hz) | | Power Requirement | 24 VDC @ 55 mA (Idle); 100 mA (maximum), ground-referenced | | Ambient Operating Environment | 0 to 40°F / -18 to 4°C maximum
20°F / -7°C recommended | | Dimensions | 4.1 x 2.1 x 1.7" / 10.5 x 5.2 x 4.3 cm | | Weight | 0.4 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.56" |
