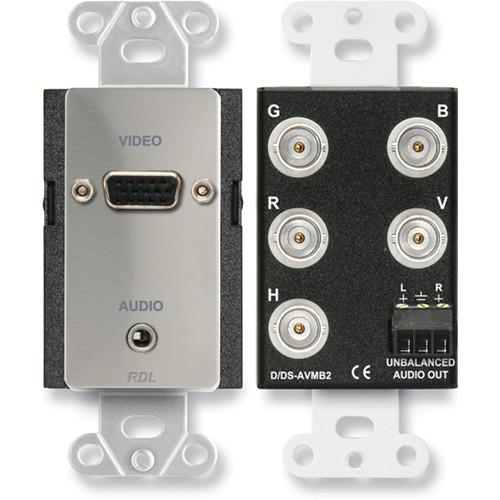

User Manual for RDL DS-AVMB2 Audio and Video Monitor BNC Panel Click to enlarge the picture
Contents of the user manual for the RDL DS-AVMB2 Audio and Video Monitor
- Product category: Wall Plates & Installation Boxes RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Wall Plates & Installation Boxes
|
User manual for the RDL DS-AVMB2 Audio and Video Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The stainless steel DS-AVMB2 Audio and Video Monitor BNC Panel from RDL is designed for installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors, and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel. In addition, the front panel features a standard video monitor connector. Video components, video sync, and their respective ground returns are separated to feed five BNC jacks on the rear panel. The BNC jacks are isolated from the module chassis ground so the appropriate signal grounds pass through without adding a video ground loop at the panel. The front panel features a single stereo mini-jack, intended for stereo consumer line-level audio sources. Furthermore, the left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs, where balanced lines are not required. You can use the panel individually or in conjunction with other RDL products as part of a complete audio/video system. It is designed to provide convenient end-user computer inputs to feed monitors or projectors in small facilities such as, boardrooms or classrooms. - Stereo audio input to stereo audio output
- Stereo input on mini-jack
- Unbalanced audio output on detachable terminal block
- Video monitor input on standard video connector
- Rear-panel video outputs (R, G, B, H, and V) on BNC jacks
- Rear-panel video outputs (R, G, B, H, and V) on BNC jacks
In the Box RDL DS-AVMB2 Audio and Video Monitor BNC Panel (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-AVMB2 Audio and Video Monitor BNC Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-AVMB2 Specs | Audio Input Connectors | Mini-jack, 3.5 mm (stereo) | | Audio Output Connector | Detachable terminal block (left and right unbalanced audio) | | Video Input Connector | HD-15 female | | Video Output Connectors | 5 x BNC
(R: Red, G: Green, B: Blue, H: Horizontal sync, V: Vertical sync) | | Dimensions (W x H x D) | 1.70 x 4.13 x 1.40" (4.32 x 10.49 x 3.56 cm) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
