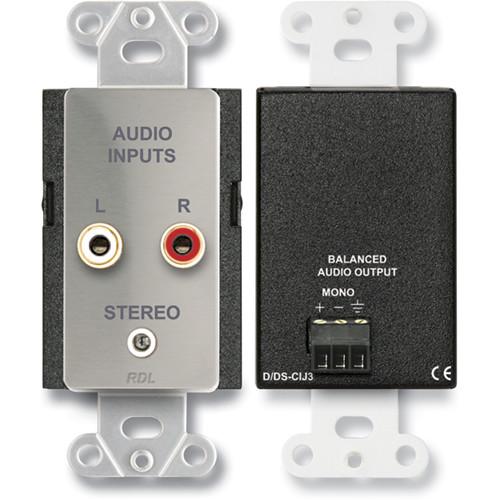

Product description The stainless steel DS-CIJ3 Consumer Input Mono Jack from RDLis a complete unbalanced line-level audio input module. It a suitable choice in installations that require passive mixing of two unbalanced line-level audio sources to feed a mono balanced(or unbalanced) audio line. The stainless steel front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal maybe connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 KΩ or higher input impedance line-level module, or equipment input. - Stereo inputs on RCA jack and stereo mini-jack
- Unbalanced to balanced conversion without gain
- Transformer isolation for unbalanced line inputs
- Line-level output to feed 10 KΩ equipment inputs
- Output connections on detachable terminal block
- Hum Cancellation on unbalanced line inputs
- Mix Stereo Inputs to Mono Balanced
UPC: 813721014870 In the Box RDL DS-CIJ3 Consumer Input Mono Jack (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-CIJ3 Consumer Input Mono Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-CIJ3 Specs | Connectors | Input: 3 x Phono jacks with gold contacts (left and right), mini-jack 3.5 mm (stereo)
Output: Detachable terminal block | | Frequency Response | Line Level: 50/30 Hz to 20 kHz (±1/2 dB) | | THD | <0.2% (1 kHz) | | Ambient Operating Environment | 32 to 131°F (0 to 55°C) | | Dimensions (W x H x D) | 1.70 x 4.13 x 2.15" (4.32 x 10.49 x 5.47 cm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.1 x 4.4 x 2.3" |
