User Manual for RDL DS-CIJ3D Consumer Input Stereo Jack Click to enlarge the picture
Contents of the user manual for the RDL DS-CIJ3D Consumer Input Stereo Jack
- Product category: Wall Plates & Installation Boxes RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Wall Plates & Installation Boxes
|
User manual for the RDL DS-CIJ3D Consumer Input Stereo Jack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

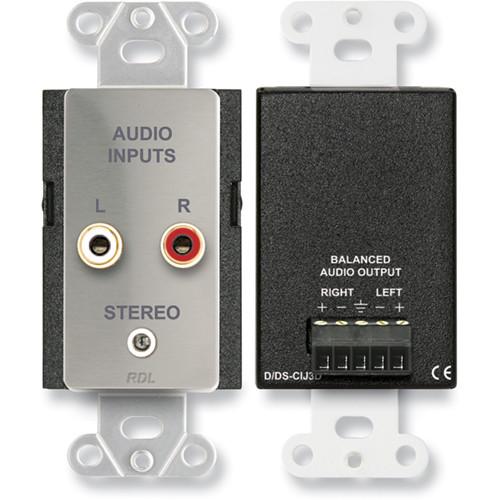

Product description The stainless steel DS-CIJ3D Consumer Input Stereo Jack from RDLis a complete unbalanced line-level audio input module. It a suitable choice in installations that require stereo unbalanced line-level audio sources to feed a stereo balanced(or unbalanced) audio line. The stainless steel front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal maybe connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to a 10 KΩ or higher input impedance line-level module, or equipment input. - Stereo inputs on RCA jack and stereo mini-jack
- Unbalanced to balanced conversion without gain
- Transformer isolation for unbalanced line inputs
- Line-level output to feed 10 KΩ equipment inputs
- Output connections on detachable terminal block
- Hum Cancellation on unbalanced line inputs
UPC: 813721014924 In the Box RDL DS-CIJ3D Consumer Input Stereo Jack (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-CIJ3D Consumer Input Stereo Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-CIJ3D Specs | Connectors | Input: 3 x Phono jacks with gold contacts (left and right), mini-jack 3.5 mm (stereo)
Output: Detachable terminal block | | Frequency Response | Line Level: 50/30 Hz to 20 kHz (±1/2 dB) | | THD | <0.2% (1 kHz) | | Ambient Operating Environment | 32 to 131°F (0 to 55°C) | | Dimensions (W x H x D) | 1.70 x 4.13 x 2.15" (4.32 x 10.49 x 5.47 cm) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 4.9 x 4.3 x 2.3" |
