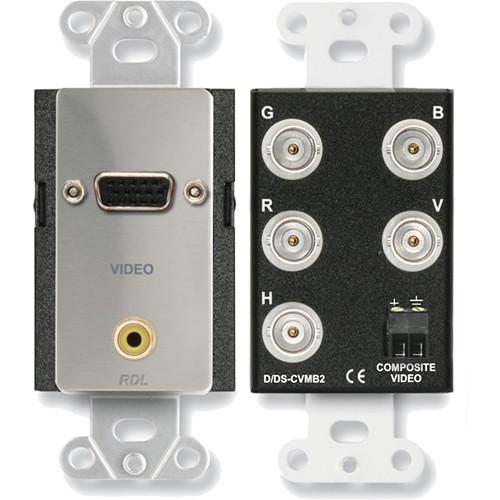

Product description The stainless steel DS-CVMB2 Composite Video & Video Monitor Connection Plate from RDL is used to connect a computer or a composite video source to a video monitor or projector in meeting rooms or classrooms. It is a suitable choice for installations requiring a wall-mounted video input or an output plate with a standard HD15 monitor and composite RCA jack connections. The panel is typically installed as an input plate but may equally be used as an output jack panel.
Video components, video sync, and their respective ground returns are separated to feed 5 BNC jacks on the rear panel. The BNC jacks are isolated from the module chassis ground so that the appropriate signal grounds pass through without adding a video ground loop at the panel.
The front panel features a standard video monitor connector and an RCA jack intended for a composite video source. The video signal is fed to a rear panel detachable terminal block. - Composite video and video monitor input panel
- Composite video input on an RCA jack
- Composite video output on a detachable terminal block
- Video monitor input on standard video 15 HD female connector
- Rear panel video outputs (R, G, B, H, V) on BNC jacks
- BNC jacks are isolated from chassis ground
In the Box RDL DS-CVMB2 Composite Video Monitor Connection Plate (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-CVMB2 Composite Video Monitor Connection Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-CVMB2 Specs | Video Input Connector | RCA jack
Female HD15 | | Video Output Connector | 5 x BNC (R: Red; G: Green; B: Blue; H: Horizontal Sync; V: Vertical Sync)
Detachable terminal block | | Dimensions | Connector Plate (H x W x D): 4.1 x 1.7 x 1.4" (104.9 x 43.2 x 35.6 mm)
Mounting Box (W x D): 1.80 x 0.15" (45.70 x 3.80 mm) (includes depth of the installer provided BNC connectors) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
