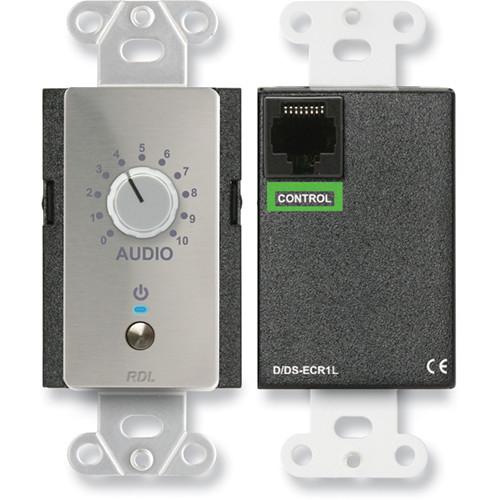

Product description The stainless steel RDL DS-ECR1L Power On/Off and Level Remote Control is a wall-mounted remote control providing A/V system power-up and power-down. Its controls directly interface with RDL products equipped with green coded RJ45 control jacks, such as the FP-ECC1 Energy Conservation Controller. The D-ECR1L provides a momentary pushbutton for power control and an LED power status indicator. The indicator glows yellow when the associated system power is in the standby mode. Pressing the soft power button toggles the system power on. The indicator glows blue when system power is on. Pressing the button when the power is on returns the system power to standby. If the host controller is set to allow full power-down, holding the button for 3 seconds takes the system out of standby and turns it off. The system remains off until the button is again pushed, placing the system in standby.
The D-ECR1L includes a single-turn level control providing 0 to 10 V VCA linear control voltage through the host controller. This control is normally used to adjust the master audio volume of an A/V system. It connects with its host controllers through twisted-pair cable terminated in RJ45 connectors. - Remote System Power On/Off Control Panel
- Level Control Provides 0 to 10 V DC at Controller
- Pushbutton Toggles Power On and Off/Standby
- LED Power Indicator Color Indicates Mode
- Blue LED: Active System Power
- Yellow LED: Standby (System Power Off)
- Red LED: Power Off and Auto Power-Up Disabled
- Flashing Red LED: Emergency Override
- Direct Control of Modules with RJ45 Power Control
- Connection to Controller Using Twisted-Pair Wiring
Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-ECR1L Power On Off and Level Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-ECR1L Specs | Level Control | 0 to 10 V DC at controller, linear, single-turn | | Power Button | Momentary | | Indicators | Red = Power Off; Yellow = Power Standby; Blue = Power On | | Mounting | Mounts in standard US electrical box | | Dimensions (LxWxH) | 1.3 x 3.2 x 4.1" (1.30 x 1.25 x 10.44 cm) | | | | Package Weight | 0.445 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
