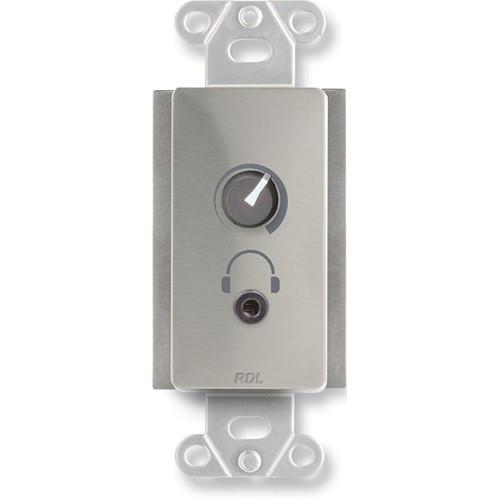

Product description The silver DS-HA1A Format-A Stereo Headphone Amplifier from RDL is a two pair receiver and audio headphone amplifier compatible with RDL Format-A twisted pair products. Each unit receives stereo audio and 24 VDC power through a rear-panel RJ45 jack fed from a Format-A sender. The left and right audio signals received on pairs B and C of the twisted pair cable are amplified and fed to the left and right channels of the output 3.5mm mini-jack.
The front panel provides the headphone output jack and a single-turn user volume control. There are no illuminated indicators that could be distracting in dark locations, such as a hotel room. The audio input circuits feature very high common mode rejection and a high quality stereo headphone amplifier for superior audio fidelity and low-noise performance.
The amplifier is equipped with two Format-A RJ45 jacks. Either jack may be used as the input. The other RJ45 may be used to connect an additional amplifier or other Format-A receiver. Installation is simple and economical. A standard twisted pair cable is used to connect a Format A sender to the amplifier.
The unit features automatic fused power, hum rejection, low noise, and low distortion for designers and installers looking to work with twisted pair products. The DS-HA1A is ideally suited to guest room installations with bedside and restroom listening stations. The input is fully compatible with all RDL Format-A senders - Headphone amplifier with user level control
- Output on standard mini jack
- Mounts in a wall or cabinet
- Input and power connection on RJ45
- Connects to Format-A sender using twisted-pair cable
- Powered from RDL twisted pair Format-A sender
- RJ45 Loop-thru for connecting additional modules
- Protected by automatically resetting fuse
- Decora design with all steel panel and rear enclosure
UPC: 813721015761 In the Box RDL DS-HA1A Format-A Stereo Headphone Amplifier (Silver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-HA1A Format-A Stereo Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-HA1A Specs | Input | RDL TP Format-A | | Input Connections | RJ45
Format-A Signal Pairs Used (2): B, C
Format-A Output: RJ45 (loop-through) | | Output | Stereo, 25 mW per channel (into 100 ohms) | | Frequency Response | 10 Hz to 40 kHz (± 1 dB, into 100 ohms) | | THD + N | < 0.01% (1 kHz, 10 mW) | | Noise | < -90 dB (maximum gain) | | Crosstalk | < -85 dB (1 kHz)
< -70 dB (20 Hz to 20 kHz) | | Power Connections | RJ45 (power provided by Format-A sender) | | Power Requirements | 24 VDC @ 20 mA | | Dimensions | 1.55 x 1.72 x 4.11 (3.94 x 4.37 x 10.44 cm) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
