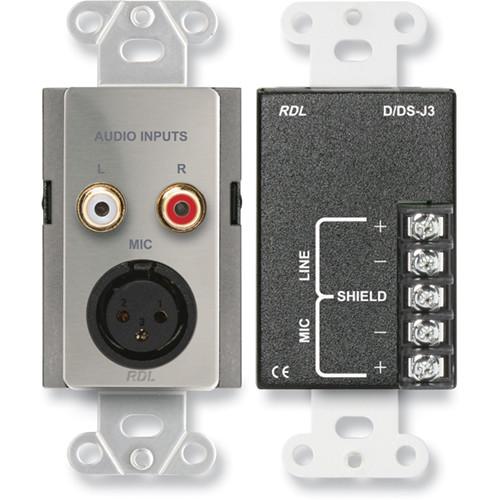

User Manual for RDL DS-J3 Mic Line Input Assembly with XLR RCA Jacks Click to enlarge the picture
Contents of the user manual for the RDL DS-J3 Mic Line Input Assembly
- Product category: Wall Plates & Installation Boxes RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Wall Plates & Installation Boxes
|
User manual for the RDL DS-J3 Mic Line Input Assembly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The stainless steel DS-J3 Mic/Line Input Assembly with XLR/RCA Jacks from RDL is a complete audio input panel assembly. Its front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear panel barrier block and the phono jacks are intended for mono or stereo consumer level sources. LEFT and RIGHT channels are combined and balanced through audio transformers configured to reject induced hum. The line level output is provided on the rear panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3 is finished with a metal enclosure clearly labeled for installation. The D SERIES-J3 fits directly into back boxes, available from RDL to fit cabinets of US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes. - Wall mounted audio inputs
- XLR microphone input with gold contacts
- Gold plated phono jack line inputs
- Hum cancellation on unbalanced line inputs
- Transformer isolation for unbalanced line inputs
- Balanced mono output for unbalanced mono or stereo line inputs
UPC: 813721015327 In the Box RDL DS-J3 Mic/Line Input Assembly with XLR/RCA Jacks (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-J3 Mic Line Input Assembly with XLR RCA Jacks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-J3 Specs | | | Input | Gold Contacts:
1 x XLR female
2 x Phono jacks | | Output | Connector: Terminal block
Output Connections:
Line:
1 (+, -)
Mic:
1 x SHIELD (XLR 1-pin)
1 x SHIELD +(XLR 2-pin)
1 x SHIELD -(XLR 3-pin) | | Frequency Response | Line-In: 30 Hz to 20 kHz (±1 dB) | | | | Construction | Stainless steel | | Power Requirement | Passive | | Dimensions | 1.70 x 4.13 x 2.15" (43.18 x 104.90 x 54.61 mm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.3" |
