User Manual for RDL DS-RC2ST 2-Channel Remote Control for STICK-ON Click to enlarge the picture
Contents of the user manual for the RDL DS-RC2ST 2-Channel Remote Control for
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL DS-RC2ST 2-Channel Remote Control for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

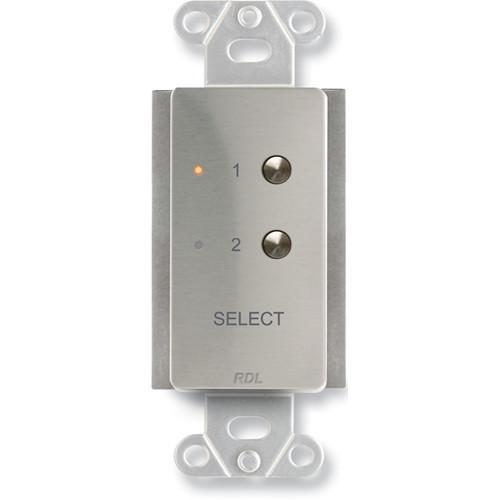

Product description The front panel of the stainless steel DS-RC2ST 2-Channel Remote Control for STICK-ON from RDL features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.
In a typical installation, the DS-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the DS-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of these examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used. UPC: 813721015587 In the Box RDL DS-RC2ST 2-Channel Remote Control for STICK-ON (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-RC2ST 2-Channel Remote Control for STICK-ON in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-RC2ST Specs | Selector Push Buttons | 2 x Momentary push buttons (1 for each channel) | | Indicators | 2 x Red LEDs (indicated channel selected) | | Connection | Detachable terminal block; Power input; open-collector outputs (25 mA current limited) | | Operating Environment | Ambient Operating Environment: 14° to 131°F (-10° to 55°C) | | Power Requirement | GROUND-REFERENCED, 24 VDC @ 30 mA | | Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes | | | | Package Weight | 3.63 lb | | Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.38" |
