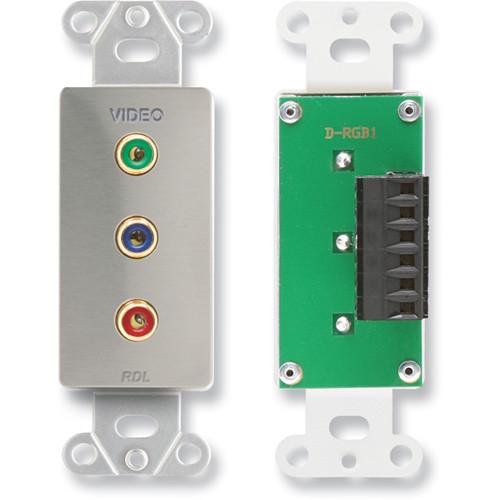

Product description The stainless steel DS-RGB1 Component Video RGB Connection Plate from RDL is a suitable choice in installations requiring a wall mounted component video input or output. The panel is installed as an input plate, but can be used as an output jack panel. Its front panel features three RCA jacks, intended for a component video source. The video signals are fed to a rear panel detachable terminal block. The DS-RGB1 is suitable to connect component video sources to a video monitor or projector in meeting rooms, classrooms, and other A/V systems. - Component video input or output panel
- RGB video input on RCA jacks
- Video outputs on detachable terminal block
In the Box RDL DS-RGB1 Component Video RGB Connection Plate (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-RGB1 Component Video RGB Connection Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-RGB1 Specs | Input Connectors | 3 x RCA, RGB | | Output Connector | Detachable terminal block | | Compliance | RoHS | | Dimensions (W x H x D) | 1.30 x 4.13 x 1.00" (33.02 x 104.90 x 25.40 mm) | | | | Package Weight | 0.521 lb | | Box Dimensions (LxWxH) | 4.0 x 2.0 x 2.0" |
