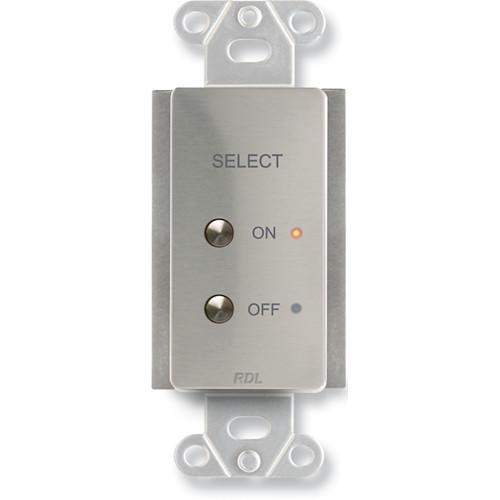

Product description The stainless steel DS-RT2 Remote Control Selector from RDL is designed to turn on and off an audio or video source. Only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the DS-RT2 may be mounted adjacent to an RDL remote volume control. In the Box RDL DS-RT2 Remote Control Selector (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-RT2 Remote Control Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-RT2 Specs | Selector Push Buttons | 1 x On
1 x Off | | Indicator LEDs | 1 x Green, On
1 x Red, Off | | Connectors | Back Panel:
4 x Screw terminal block, power and control | | Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes | | Power Requirement | Ground-referenced, 24 VDC @ 30 mA | | Ambient Operating Temperature | 32 to 131°F (0 to 55°C) | | Dimensions (L x W x D) | 4.1 x 1.3 x 1" (10.4 x 3.3 x 2.5 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
