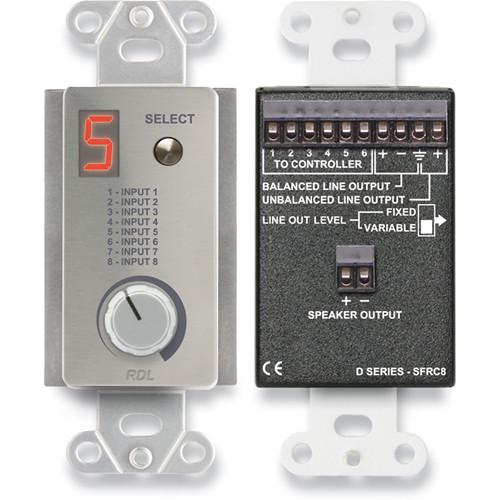

Product description The silver DS-SFRC8 Room Control Station for SourceFlex Distributed Audio System from RDL allows you to select between 8 different audio input sources and provides amplified outputs in addition to balanced and unbalanced line level outputs. It is designed for use where distributed audio with background music and paging are needed. The built-in Class D amplifier provides up to 3.5 watts of output. The front-panel volume adjustment knob can control the output volume of the amplified output.
A rear-panel switch set during installation causes the balanced line-level output to produce either a fixed +4 dBu or a variable level adjusted by the front-panel control. The unbalanced output is 12 dB below the balanced output level. The unit can be mounted in a wall box. - Single Room Listening Station with In-Wall Controls
- Source Selection Pushbutton
- Volume Adjustment Using a Single-Turn Control
- Selection From up to 8 Audio Sources
- Line Output Switchable Fixed or Variable
- Variable Output Follows Front-Panel Level Control
- 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
- Thermal and Short-Circuit Protection
- Speaker Output Connection on Detachable Terminal Block
- Mounts In Wall Using US Single Gang Electrical Box or RDL WB-1U
In the Box RDL DS-SFRC8 Room Control Station for SourceFlex Distributed Audio System (Silver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-SFRC8 Room Control Station for SourceFlex Distributed Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-SFRC8 Specs | Input | 10 position detachable terminal block | | Display | 7 segment red LED (0 = off or Paging; 1 through 8 = selected channel) | | Selector Push Buttons | Momentary button channel SELECT | | Gain Adjustment | Single-turn audio taper (Front-panel) | | Frequency Response | Line Level: 20 Hz to 20 kHz (±0.1 dB)
Speaker: 40 Hz to 20 kHz (±1 dB) | | THD + N | Line Level: < 0.1% (20 Hz to 20 kHz)
Speaker: < 0.25% (1 kHz) | | Noise | Line Level: < -85 dB (Below +4 dBu)
Speaker: < -80 dB (Below 1 W RMS) | | Control Signal | DC (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller) | | Line Outputs | +4 dBu balanced, -10 dBV unbalanced, nominal | | Output Power | Into 8 Ω: 3.5 W RMS (Maximum)
Into 4 Ω: 6.5 W RMS (Maximum) | | Power Requirement | 24 VDC @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 Ω), Supplied from SourceFlex controller | | Operating Temperature | 32 to 104°F, maximum (0 to 40°C, maximum)
Recommended: 68°F (20°C) | | Dimensions (HxWxL) | 4.1 x 1.1 x 1.7" (10.4 x 2.9 x 4.4 cm) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
