User Manual for RDL DS-SH1M Stereo Headphone Amplifier with Muting Click to enlarge the picture
Contents of the user manual for the RDL DS-SH1M Stereo Headphone Amplifier with
- Product category: Headphone Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Headphone Amplifiers
|
User manual for the RDL DS-SH1M Stereo Headphone Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

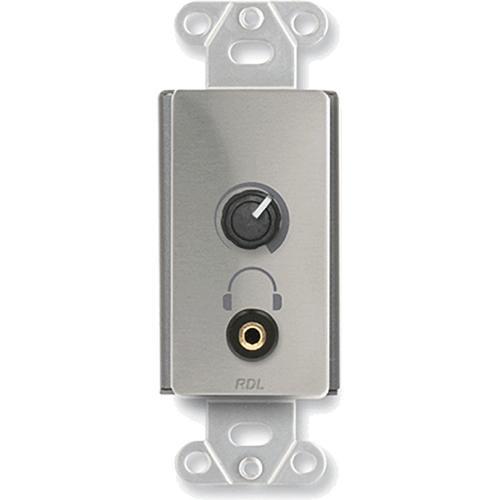

Product description The Radio Design DS-SH1M is a surface mounted, stereo / mono, headphone amplifier for audio installations of any kind. Museum exhibits, private audio monitoring installations, and listening stations are among some of the possible applications the DS-SH1 is suitable for. The module mounts conveniently in a precut opening in a wood or metal enclosure or in various RDL mounting accessories.The dual-channel headphone amplifier features balanced/unbalanced left and right inputs that accept operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One of the switches sets the input sensitivity, the other selects between stereo and mono operation. The front panel level control is a long-life potentiometer. Because audio does not pass through this control, it can provide years of noise-free level adjustment. - Long Life Controls
- Because audio does not pass through the Radio Labs DS-SH1M control, it assures years of noise-free level adjustment. This, with the integral long-life VCA stereo level control (with balanced or unbalanced inputs) means you will have a durable and dependable amplifier.
- Drives High or Low Impedance Headsets
- It comes with built-in headphone adaptability. The output amplifiers deliver more than 50mW into either high or low impedance headphones through a 1/8" (3.5mm) mini headphone jack.
- Convenient Mounting
- This unit adapts to studio or office. This Radio Design amplifier is designed with the convenience of APPFLEX Mounting allowing panel-mounted or wall mounted functionality.
UPC: 813721015013 In the Box RDL DS-SH1M Stereo Headphone Amplifier with Muting (Decora) (1/8" Mini) 3-Year Warrranty from Date of Shipment Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-SH1M Stereo Headphone Amplifier with Muting in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-SH1M Specs | Number of Channels | 1 | | Input Connections | Balanced/unbalanced left and right inputs x 2 | | Output Connectors | 1/8" (3.5mm) x 1 | | Maximum Output Level | 50mW | | Function Controls | Volume | | Frequency Response | 30Hz to 20kHz (+/- 2dB) | | THD + N | < 0.5% @ 1kHz | | Noise | < -70 dB below normal operating level | | Display | No | | Dimensions | 2.46 x 1.9" (in.) (0.97 x 0.75cm)
(Depth not Specified by Manufacturer) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.67 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 3.0" |
