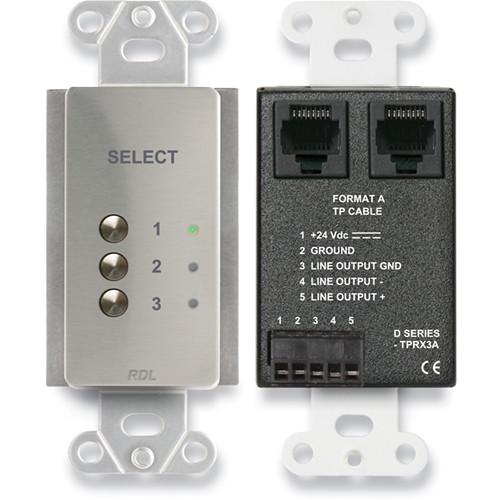

Product description The stainless DS-TPRX3A 3-Input Format-A Source Selector from RDL allows you to select between 3 audio different audio sources, and provides a balanced line-level output via detachable terminal block. Only one source can be selected at a time, and selecting a new source defeats the other sources. An LED indicator shows which of its 3 inputs is selected at any time. The unit requires 24 VDC power that can be supplied through an optional power supply for through its terminal block. - Remote Selection from 3 Sources that Correspond to 3 Format-A Pairs
- Single-Button Selection for Each Source
- Line-Level Balanced Output on Detachable Terminal Block
- Display is Bright During Adjustment
- Display Dims After Adjustment
- Remote Powering through Twisted Pair Cable
- Fused Local Power Feeds all Connected Modules
- Local Power Input on Terminal Block
- Active Balanced Circuitry
In the Box RDL DS-TPRX3A 3-Input Format-A Source Selector (Stainless) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-TPRX3A 3-Input Format-A Source Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-TPRX3A Specs | Input | RDL Format A | | Input Connector | RJ45 | | Format | Format-A Signal Pairs Used (3): A, B, C | | Switches | Front-Panel Switches: 3x Momentary pushbuttons (1 per input) | | Indicators | Front-Panel Indicators: 3x Select channel | | Output | 150 Ω, balanced | | Output Connection | Detachable terminal block
Format A Output: RJ45 (Loop-Through) | | Output Level | +4 dBu Line level, nominal | | Frequency Response | 10 Hz to 20 kHz (± 0.5 dB) | | THD + N | < 0.005% (1 kHz); <0.05% (20 Hz to 20 kHz) | | Noise | Noise Below +4 dBu: <-85 dB | | Attenuation | Off Attenuation: <90 dB (1 kHz); < 70 dB (20 Hz to 20 kHz) | | Headroom | Headroom Above +4 dBu: >18 dB | | CMRR | >80 dB (50 to 150 Hz) | | Power Connectors | Detachable Terminal Block
RJ45 | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Power Requirements | 24 VDC @ 45 mA plus connected loads | | Dimensions (H x W x L) | 4.1 x 1 x 1.7" (10.4 x 2.5 x 4.4 cm) | | | | Package Weight | 0.385 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
