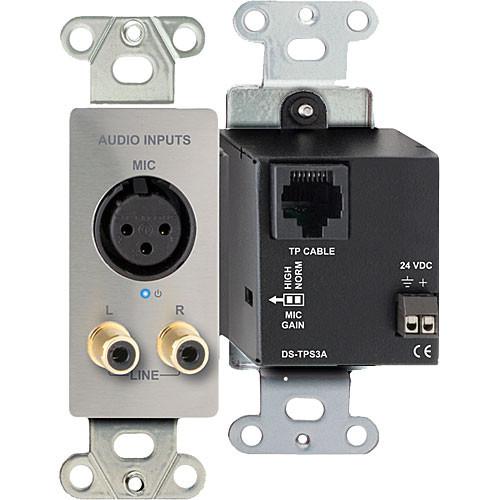

User Manual for RDL DS-TPS3A Triple Pair RJ45 Sender Module Click to enlarge the picture
Contents of the user manual for the RDL DS-TPS3A Triple Pair RJ45 Sender
- Product category: Modules & Cards RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Modules & Cards
|
User manual for the RDL DS-TPS3A Triple Pair RJ45 Sender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The DS-TPS3A Triple Pair RJ45 Sender Module from RDL is a three-pair audio sending module compatible with RDL Format-A twisted pair products. The DS-TPS3A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations. This module features an XLR microphone input and two RCA phono jack inputs, one for the left channel source and one for the right channel source. The unbalanced inputs are designed to receive standard -10 dBV consumer level signals. The microphone input provides 24 VDC IEC phantom voltage and accepts both dynamic and condenser microphone signals. The input signals are amplified using studio-quality pre-amplifiers optimized for normal operating levels. A rear-panel GAIN switch is provided to set the amplification of the microphone pre-amplifier. This switch is normally set by the installer for NORM (normal) gain. If consistently low microphone levels are expected, this switch may be set to the HIGH gain position. The pre-amplified microphone source is routed to pair A. The buffered left and right line-level inputs are routed to output cable pairs B and C.
The DS-TPS3A can be powered directly from a 24 VDC power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The DS-TPS3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED. This unit is designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The DS-TPS3A model can mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. Note: This module drives all three FORMAT-A cable pairs, so it is not equipped to receive inputs from other sender modules. The D SERIES-TPS3A may not be connected together with any other sending modules. - Balanced microphone XLR input with phantom
- Switch-selectable Mic Gain on rear panel
- Two unbalanced -10 dBV phono jack line inputs
- MIC feeds Pair A; L feeds Pair B; R feeds Pair C
- Remote powering through twisted pair cable
- Fused local power feeds all connected modules
- Local power input on terminal block
- Blue LED indicates module is powered
- Utilizes all three Format-A pairs
- Studio-Quality Precision Active Balanced Circuitry
UPC: 813721013743 In the Box RDL DS-TPS3A Triple Pair RJ45 Sender Module (Silver) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-TPS3A Triple Pair RJ45 Sender Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-TPS3A Specs | Inputs | Microphone: 1.2 kOhms balanced with IEC 24 VDC phantom
Line (left and right): 10 kOhms unbalanced | | Input Connections | XLR, microphone
RCA phono, Line
Format A Single Pair Used: A (Mic); B (Unbalanced Line Left); C (Unbalanced Line Right) | | Input Level | Microphone: -45 to -65 dBu balanced; Maximum: -40 dBu (HIGH Gain), -28 dBu (NORM Gain)
Line: -10 dBV unbalanced; +10 dBV Max | | Output | RDL TP Format-A | | Output Connections | RJ45 | | Frequency Response | Microphone: 100 Hz to 30 kHz (± 1 dB); integral low-cut filter -10 dB @ 30 Hz
Line: 20 Hz to 50 kHz (± 0.5 dB) | | THD & Noise | Microphone: < 0.1% (80 Hz to 20 kHz)
Line: < 0.05% (20 Hz to 50 kHz); <0.005% (1 kHz) | | Noise | Below +4 dBu
Microphone: < -80 dB (Norm Gain), < -70 dB (High Gain)
Line: < -95 dB | | Crosstalk | Line to Line: < 90 dB (1 kHz); < 75 dB (20 Hz to 20 kHz)
Line to Microphone (High Gain): < 65 dB (1 kHz), < 60 dB (20 Hz to 20 kHz)
Line to Microphone (Norm Gain): < 75 dB (1 kHz), < 70 dB (20 Hz to 20 kHz) | | Headroom | Above +4 dBu: > 18 dB | | CMRR | Microphone: > 60 dB (HIGH Gain 50 Hz to 150 Hz), > 65 dB (NORM Gain 50 Hz to 150 Hz) | | LED Indicator | Power In, blue | | Power Connections | 2 x RJ45; Detachable terminal block | | Power Requirements | 24 VDC @ 65 mA plus connected loads | | Ambient Operating Environment | 32 to 131°F (0 to 55°C) | | Minimum Depth | Mounting Box Minimum Depth: 2.4" (6.1 cm) | | Dimensions | 1.6 x 4.11 x 1.89" (4.8 x 4.06 x 4.8 cm) | | Weight | 0.24 lb (0.11 kg) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.2" |
