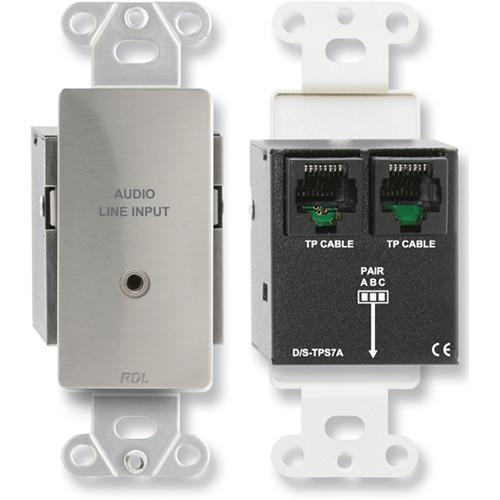

Product description The stainless steel DS-TPS7A Format-A Passive Single-Pair Sender with Mini Jack from RDLis a single-pair audio sending module compatible with RDL Format-A twisted pair products. Its front panel features single stereo mini-jack intended for stereo consumer line level audio sources. A studio quality transformer provides isolation between the audio source and the RJ-45 TP CABLE. It is a single-pair sender, which feeds the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ-45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. In addition, two other single-pair senders may be chained to a TP CABLE jack or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair A, B or C. It must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C. It is a passive module that does not require power to operate. In addition, if power is present on a cable connected to a TP CABLE jack, then that power is passed through, to the modules connected to the other TP CABLE jack. - Stereo audio input combined to mono output
- Switch-selects which RJ-45 Pair (A, B or C) is fed
- Signal and power pair pass-through between TP CABLE RJ-45 jacks
- Passive circuitry does not require power
- Galvanic isolation through a studio quality transformer
- Daisy chain with single-pair or two-pair Format-A senders
In the Box RDL DS-TPS7A Format-A Passive Single-Pair Sender with Mini Jack (Stainless Steel) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL DS-TPS7A Format-A Passive Single-Pair Sender with Mini Jack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL DS-TPS7A Specs | Input | 3.5 mm mini-jack, unbalanced stereo combined to mono | | Input Connector | RJ45 TP CABLE, Format-A | | Input Level | -10 dBV, +22 dBu maximum | | Signal Pair | Switch-selectable A, B, or C (rear panel switch), Format-A | | Output | RJ-45 TP CABLE RDL TP, Format-A | | Frequency Response | 20 Hz to 20 kHz (±0.5 dB) | | Total Harmonic Distortion (THD) | up to 0.1% (50 Hz to 20 kHz)
up to 0.001% (1 kHz typ) | | Power Requirement | Passive | | Compliance | RoHS, CE | | Dimensions (W x H x D) | 1.60 x 4.11 x 1.89" (40.64 x 104.39 x 48.01 mm) | | | | Package Weight | 0.52 lb | | Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
