User Manual for RDL EZ-AVX4 4-Channel Composite Video and Audio Switcher Click to enlarge the picture
Contents of the user manual for the RDL EZ-AVX4 4-Channel Composite Video and
- Product category: Switchers & Controllers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Switchers & Controllers
|
User manual for the RDL EZ-AVX4 4-Channel Composite Video and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

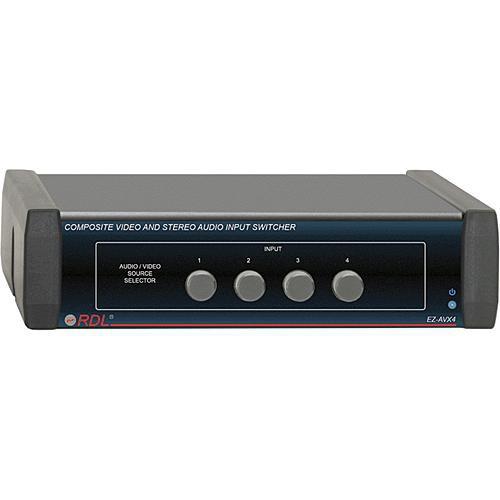

Product description The RDL EZ-AVX4 4-Channel Composite Video and Audio Switcher is a simple device that effectively switches between 4 consumer video player devices. Both audio and video signals are switched simultaneously, using the large push-button switches on the front. The EZ-AVX4 will accept both NTSC and PAL video standards. - Four Input Source Selection
- Video Inputs Accept NTSC or PAL Signals
- Unbalanced Stereo Audio Inputs and Output
- Simultaneous Audio and Video Switching
- Audio and Video on Color-Coded RCA Jacks
- Inputs and Outputs on Rear Panel
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio and Video Switching
- Switch Noise Cannot Affect Signal Quality
UPC: 813721010049 In the Box RDL EZ-AVX4 4-Channel Composite Video and Audio Switcher Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-AVX4 4-Channel Composite Video and Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-AVX4 Specs | | | Inputs | Stereo on dual RCA jacks, > 10k ohms, -10dBV nominal, +10dBV max. | | Gain | Unity, nominal | | Output | Stereo on dual RCA jacks, -10dBV nominal, +10dBV max. | | Frequency Response | 10Hz to 20kHz (+/- 0.01dB) | | THD & Noise | < 0.02% | | Off Attenuation | > 95dB | | | | Inputs | RCA Jacks, 1V p-p, 75 ohms | | Gain | Unity, nominal | | Output | RCA Jack, 1V p-p, 75 ohms | | Bandwidth | > 350MHz | | Differential Gain | < 0.1% | | Differential Phase | < 0.1% | | Off Attenuation | > 40dB @ 10MHz | | Noise | < -90dB ( 1 V p-p video, 75 ohms) | | Power | 24VDC, 85mA (idle), 100mA (max.) | | Dimensions | 5.75 x 5" (14.6 x 12.7cm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.2 x 7.4 x 2.4" |
