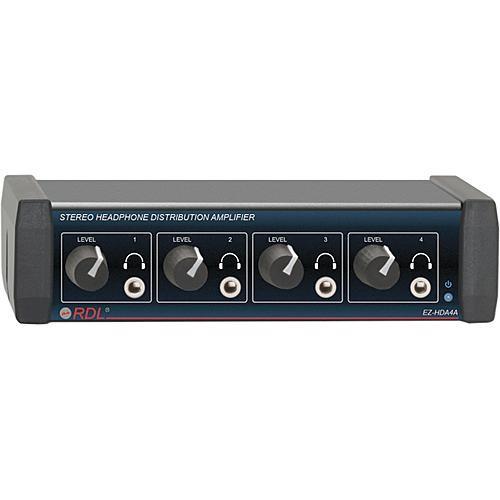

User Manual for RDL EZ-HDA4A 4-Channel Stereo Headphone Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the RDL EZ-HDA4A 4-Channel Stereo Headphone Distribution
- Product category: Headphone Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Headphone Amplifiers
|
User manual for the RDL EZ-HDA4A 4-Channel Stereo Headphone Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL EZ-HDA4A Stereo Headphone Distribution Amplifier features 4 separately amplified 1/4" TRS Phone headphone outputs, level controls on each output and RCA phono, 1/8" (3.5mm) Mini and 1/4" Phone Stereo inputs on the rear. Although the unit accepts input signal from 1 of the available 3 inputs, the choice of inputs makes the EZ-HDA4A a flexible monitoring solution for recording studios, audio installations, home applications, etc. The compact enclosure takes up just 1/3 of a 19-inch rack space. - 4 front mounted headphone outputs with level control
- Individually amplified outputs
- RCA phono, 1/4" TRS phone and 1/8" (3.5mm) mini stereo input connections provided on the rear
- Gold plated RCA connections
UPC: 813721010056 In the Box RDL EZ-HDA4A 4-Channel Stereo Headphone Distribution Amplifier (Front Outputs) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-HDA4A 4-Channel Stereo Headphone Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-HDA4A Specs | Number of Channels | 4 | | Input Connections | Gold Plated RCA Phono
1/4" TRS Phone 1/8" (3.5mm) Mini | | Output Connectors | 4x Front Mounted 1/4" TRS Phone | | Maximum Output Level | Not Specified By Manufacturer | | Function Controls | x4 Level Controls | | Frequency Response | 20Hz to 50kHz (+/- 1.5dB) | | THD + N | < 0.1% (10mW output, 100 ohm load) | | Noise | < -95dB (below 10mW output, 100 ohm load, maximum gain) | | Display | LED | | Dimensions (WxD) | 5.75 x 3" (14.6 x 7.6 cm) | | Weight | Not Specified By Manufacturer | | Specialties | Choice of 3 Inputs and 4 Front Mounted Outputs | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 10.5 x 7.5 x 2.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
