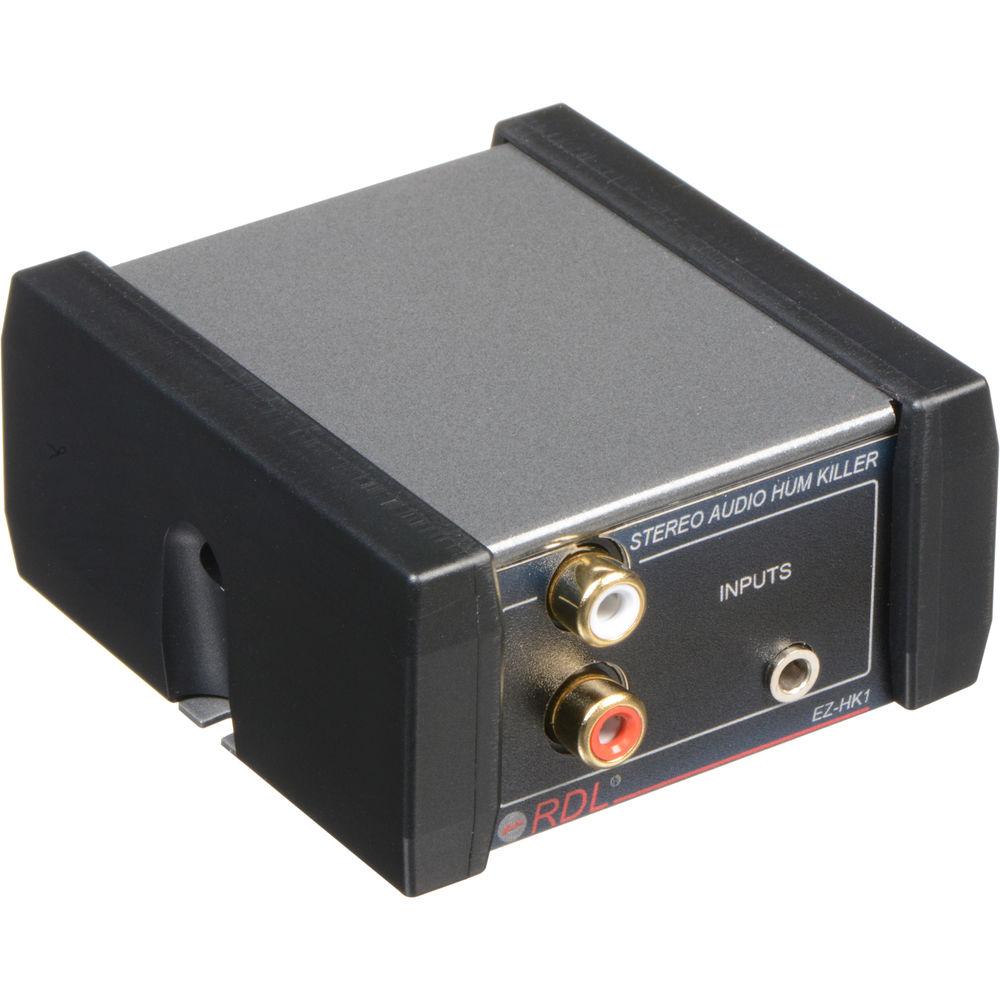

Product description The RDL EZ-HK1 Stereo Audio Hum Killer is a stereo audio transformer isolation module. It's designed specifically for use with unbalanced, high-impedance audio inputs. The device features both input and output connections on gold-plated RCA jacks. Each input jack is electrically isolated from the case itself, as well as from the output ground. Each output jack is connected to the rear-panel ground-lift switch, which is designed to eliminate hum due to ground loops. Ground loops are common when the EZ-HK1 is installed between an unbalanced audio source (such as a computer, CD player, cassette player or other consumer audio product) and the input of a grounded amplifier in an audio system. Key Features - Stereo Audio Inputs
- Connect the output from an audio source to the RCA jacks or to the stereo mini-jack
- Stereo Audio Outputs
- Connect one of the EZ-HK1 outputs to the amplifier or system audio input

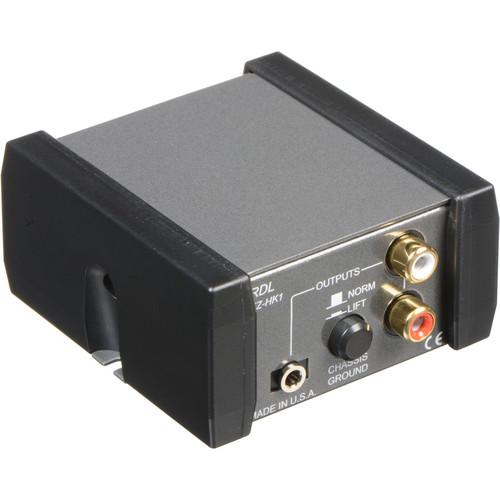

- Ground-Lift Switch
- The audio output cable shields are connected to the EZ-HK1 chassis when the switch is in the NORM position. In the unlikely event that the EZ-HK1 chassis is mounted to equipment with a different ground from the equipment the EZ-HK1 output is feeding, a ground loop could be produced. This ground loop is eliminated by setting the switch to the LIFT position

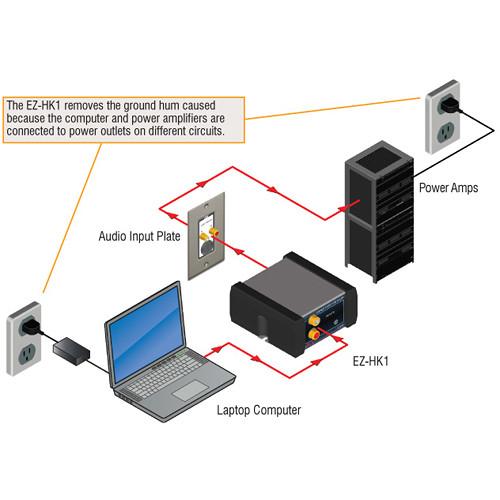

Highlights - Audio ground-loop hum elimination
- Conversion between mini-jack and RCA formats
- Unbalanced stereo galvanic isolation
- Portable use or permanent installation
UPC: 813721010643 In the Box RDL EZ-HK1 Stereo Audio Hum Killer 4 x Rubber Feet Set of Mounting Screws 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-HK1 Stereo Audio Hum Killer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-HK1 Specs | Inputs | Stereo RCA Phono Jacks / Stereo Mini Jack (-10 dBV nominal, ground-isolated) | | Input Impedance | 10 kohms | | Outputs | Stereo RCA Phono Jacks / Stereo Mini Jack (-10 dBV nominal) | | Output Impedance | 10 kohms | | Output Isolation | Switch-Selectable | | Gain | Unity Nominal (passive circuit) | | Frequency Response | 20Hz - 20kHz (±1.0dB) | | Total Harmonic Distortion (THD) | <0.05% (1.0kHz) | | Crosstalk | <-75dB (20Hz - 10kHz) / <-65dB (10 - 20kHz) | | Mounting Size | 1/6 rack width | | Dimensions (WxD) | 2.9 x 3.0" (7.4 x 7.6 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 4.9 x 4.3 x 2.3" |
