User Manual for RDL EZ-HK2 Composite Video Hum Killer Click to enlarge the picture
Contents of the user manual for the RDL EZ-HK2 Composite Video Hum Killer
- Product category: Hum Eliminators RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Hum Eliminators
|
User manual for the RDL EZ-HK2 Composite Video Hum Killer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|

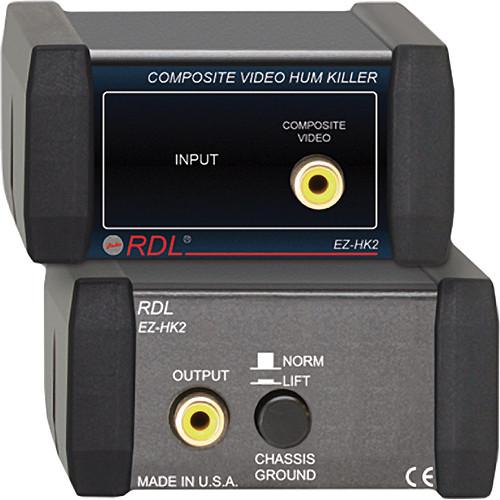

Product description The RDL EZ-HK2 Composite Video Hum Killer is a high-quality video transformer isolation module. It's designed specifically for use with 75 ohm composite video. The device features both input and output connections on gold-plated RCA jacks. Each input jack is electrically isolated from the case itself, as well as from the output ground. Each output jack is connected to the rear-panel ground-lift switch, which is designed to eliminate hum due to ground loops. Ground loops are common when the EZ-HK2 is installed between a video source, such as a computer or DVD player, and the input of a grounded video monitor or projector in an AV or video system. Key Features - Composite Video Input
- Plug a video cable into the jack. The other end of the video cable may be fed from any standard video source including a DVD player, VCR, composite video card or television tuner
- Composite Video Output
- Plug a video cable into the jack. Connect the other end of the video cable to the video input of a DVD player, VCR, TV video monitor or other equipment with a video input
- Ground-Lift Switch
- The video output cable shield is connected to the EZ-HK2 chassis when the switch is in the NORM position. In the unlikely event that the EZ-HK2 chassis is mounted to equipment with a different ground from the equipment the EZ-HK2 output is feeding, a ground loop could be produced. This ground loop is eliminated by setting the switch to the LIFT position
Highlights - Video ground-loop hum elimination
- 75 ohm composite video galvanic isolation
- Portable use or permanent installation
- Excellent low and high video frequency response
UPC: 813721010667 In the Box RDL EZ-HK2 Composite Video Hum Killer 4 x Rubber Feet Set of Mounting Screws 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-HK2 Composite Video Hum Killer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-HK2 Specs | Input | Composite Video (1 V p-p nominal, ground-isolated) | | Input Impedance | 75 ohms | | Output | Composite Video (1 V p-p nominal) | | Output Impedance | 75 ohms | | Output Isolation | Switch-Selectable | | Gain | Unity Nominal (passive circuit) | | Video Bandwidth | 40Hz to >5MHz | | Mounting Size | 1/6 rack width | | Dimensions (WxD) | 2.9 x 3.0" (7.4 x 7.6 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.8 x 4.4 x 2.2" |
