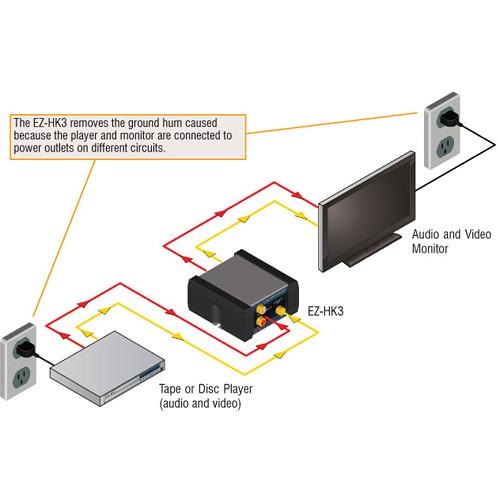

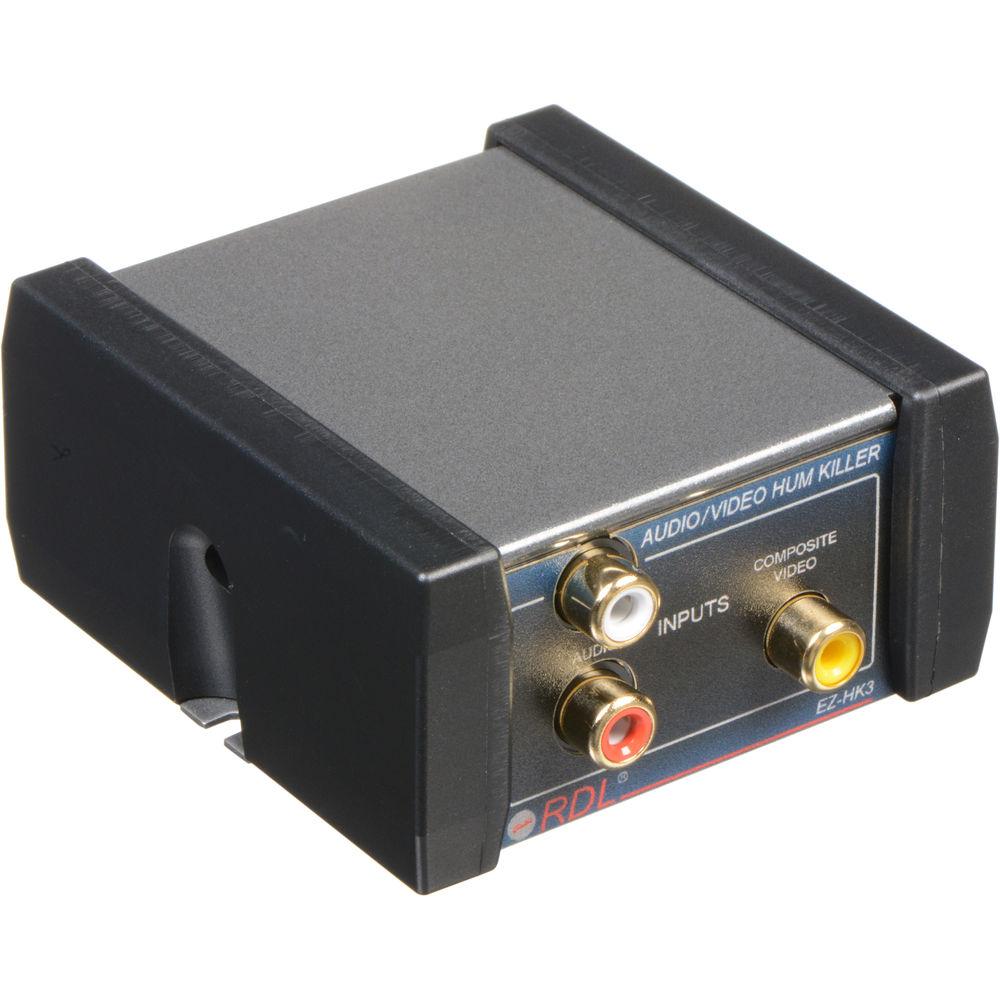

Product description The RDL EZ-HK3 Audio/Video Hum Killer is a high-quality video transformer isolation module. It's designed specifically for use with unbalanced high-impedance audio inputs and 75-Ohm composite video. The device features both input and output connections on gold-plated RCA jacks. Each input jack is electrically isolated from the case itself as well as from the output ground. Each output jack is connected to the rear panel ground-lift switch, which is designed to eliminate hum due to ground loops. Ground loops are common when the EZ-HK3 is installed between a video source, such as a computer or DVD player, and the input of a grounded video monitor or projector in an AV or video system. Key Features - Composite Video Input
- Connect the video output from the audio/video source to the composite video input RCA jack
- Stereo Audio Inputs
- Connect the audio output from the audio/video source to the RCA jacks
- Composite Video Output
- Connect the video output to the A/V system or equipment video input
- Stereo Audio Outputs
- Connect the audio outputs to the A/V system or equipment audio input
- Ground-Lift Switch
- The audio and video output cable shields are connected to the EZ-HK3 chassis when the switch is in the NORM position. In the unlikely event that the EZ-HK3 chassis is mounted to equipment with a different ground from the equipment the EZ-HK3 output is feeding, a ground loop could be produced. This ground loop is eliminated by setting the switch to the LIFT position
Highlights - Audio and video ground-loop hum elimination
- Unbalanced stereo galvanic isolation
- 75-Ohm composite video galvanic isolation
- Portable use or permanent installation
- Input and output RCA jacks
- Excellent low and high video frequency response
UPC: 813721010681 In the Box RDL EZ-HK3 Audio/Video Hum Killer 4 x Rubber Feet Set of Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-HK3 Audio Video Hum Killer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-HK3 Specs | Video Output | Composite Video (1 V p-p nominal) | | Output Impedance | Video: 75 Ohms Audio: 10 kOhms | | Video Bandwidth | 40 Hz to > 5 MHz | | Audio Input | Stereo on RCA Phono jacks (-10 dBV nominal, ground-isolated) | | Audio Input Impedance | 10 kOhms | | Audio Output | Stereo on RCA Phono jacks, -10 dBV nominal | | Audio Frequency Response | 20 Hz - 20 kHz (±1 dB) | | Total Harmonic Distortion (THD) | < 0.05% (1 kHz) | | Crosstalk | Channel to Channel: < -75 dB (20 Hz - 10 kHz) / < -65 dB (10 kHz to 20 kHz)
Video to Audio: < -80 dB (referred to -10 dBV)
Audio to Video: < -85 dB (referred to 1 V p-p) | | Output Isolation | Output Ground Isolation: Switch-selectable (lifts audio and video grounds) | | Gain | Audio/Video: Unity nominal (passive circuit) | | Mounting Size | 1/6 rack width | | Dimensions (WxD) | 2.9 x 3.0" / 7.4 x 7.6 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 2.2" |
