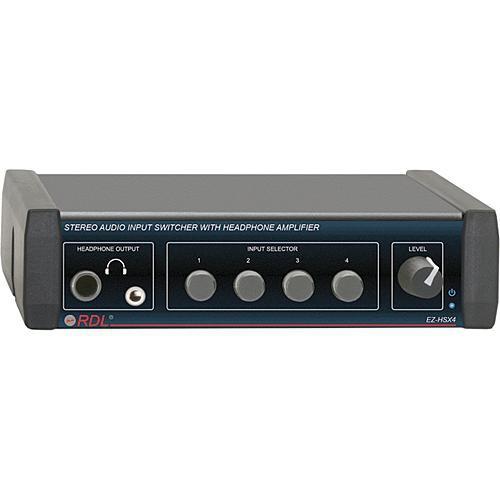

Product description The RDL EZ-HSX4 4-Channel Audio Switcher is a simple device that effectively switches between 4 consumer audio sources. Four RCA stereo inputs accomodate consumer line-level devices, and 1/4" phone and 1/8" (3.5mm) mini headphone outputs are features on the front panel. - Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output
- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Switchable Fixed (Unity Gain) or Variable
- Variable Output Follows Front-Panel Level Control
- Headphone Output on 1/4" (6.3 mm) and MINI Jacks
- Headphone Output Follows Front-Panel Level Control
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality
UPC: 813721010087 In the Box RDL EZ-HSX4 4-Channel Audio Switcher with Headphone Amp Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-HSX4 4-Channel Audio Switcher with Headphone Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-HSX4 Specs | Inputs | Stereo on dual RCA jacks, > 10k ohms, -10dBV nominal, +10dBV max. | | Outputs | Stereo on dual RCA jacks, > 10k ohms, -10dBV nominal, +10dBV max.
1/4" Phone and 1/8" (3.5mm) Mini | | Level Control | Off to +12dB gain | | Frequency Response | 10Hz to 20kHz (+/- 0.01dB) | | THD & Noise | < 0.03% (line output), < 0.1% (headphone output, 10mW, 100 ohms load) | | Power | 24VDC, 40mA (idle), 50mA (max.) | | Dimensions | 5.75 x 5" (14.6 x 12.7cm) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 10.2 x 7.2 x 2.4" |
