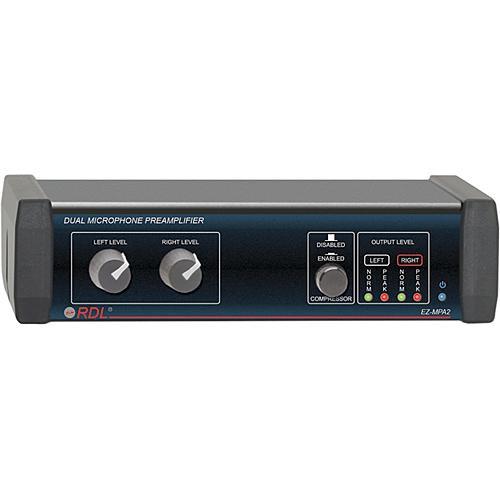

User Manual for RDL EZ-MPA2 - Microphone Preamp Click to enlarge the picture
Contents of the user manual for the RDL EZ-MPA2 - Microphone Preamp
- Product category: Microphone Preamps RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Microphone Preamps
|
User manual for the RDL EZ-MPA2 - Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The EZ-MPA2 from RDL is a dual-channel microphone preamplifier with individual front-panel volume controls and audio level metering. An analog compressor (switchable from the front-panel) is able to control overloads and clipping during high level audio bursts or peaks. Phantom power is provided for use with condenser microphones. The line output features two RCA phono connectors and a stereo mini jack. Per channel LED VU metering provides visual feedback for easy level adjustment. The EZ-MPA2 is ideal for adding microphone inputs to mixers and amplifiers with line inputs, and it can be used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios and commercial sound systems. - Dual channel microphone preamp in a compact housing
- +24V phantom power, switch-selectable (global) from the rear panel
- Front-panel, input level controls for each input
- Unbalanced output on a stereo mini or dual RCA phono connectors
- Analog compressor controls overloads using a simple, single control
- Front-panel compressor enable/disable switch
- Dual-LED VU meter for monitoring the output of each channel
UPC: 813721010100 In the Box RDL EZ-MPA2 - Microphone Preamp External Power Supply Rubber Feet Three (3) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-MPA2 - Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-MPA2 Specs | Number of Channels | 2 | | Inputs | 2 x XLR | | Output | 2 x RCA phono
1 x 1/8" stereo mini | | Phantom Power | +24V | | Multi Function | Compressor | | Gain Range | 0dB to +50dB | | Maximum Output Level | +16dBV, without compression | | Frequency Response | 80Hz to 40kHz, +/-1.0dB | | Noise | <-65dB (below -10dBV output, -50dBu input) | | Power Requirements | 24VDC via included power supply | | Dimensions (WxDxH) | 5.75 x 3.0 x 1.7" (146 x 76 x 43mm) | | Weight | Not specified by manufacturer | | Specialties | Compressor limits clipping over a wide dynamic range | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.2 x 7.4 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
