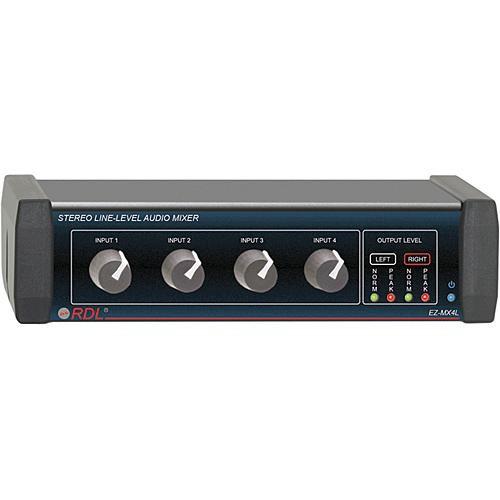

Product description The RDL EZ-MX4L Stereo 4-Channel, Line-Level Mixer is a suitable solution for anyone who needs to attach multiple devices into a single input. For example, if you have an MP3 player, a laptop, and a Blu-Ray player with stereo outputs, the EZ-MX4L will allow you to connect them all to a single input on a speaker/amplifier (such as a home stereo system or powered computer speakers). The EZ-MX4L features 4 gold-plated stereo RCA inputs. Channel 4 also features a stereo 3.5mm mini-plug input. Each of these four inputs has a level control knob on the front panel. The output of the EZ-MX4L gives you the option of connecting with stereo RCA jacks or with a stereo 3.5mm mini-plug output. The EZ-MX4L operates with standard AC power and can simplify mixing multiple signals into a home entertainment system, a multimedia set up, or any situation that requires combining a few line-level stereo signals. - Compact, 4-channel, line-level mixer with four gold-plated stereo RCA inputs, and one stereo 3.5mm mini-plug input
- 2-segment VU meters on both the left and right stereo outputs
- Simple operation with 4 volume knobs (one for each input) on the front panel
- Gives you the option of connecting the master output with either stereo RCA jacks or a stereo 3.5mm mini-plug output
- Operates with standard AC power
- Made in the USA with quality Radio Design Labs craftsmanship
UPC: 813721010117 In the Box RDL EZ-MX4L Stereo 4-Channel, Line-Level Mixer Power Supply Rubber Feet Limited 3-Year Warranty User Manual PDF 748.8kbvfrzwdzdxfasbcxuutffwd Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-MX4L Stereo 4-Channel, Line-Level Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-MX4L Specs | Input Connections | 4 x Unbalanced RCA line-level inputs (stereo pairs)
1 x Unbalanced stereo 1/8" / 3.5 mm mini-plug input | | Impedance | > 10 kOhms (-10 dBV nominal on RCA input jacks) | | Output Connectors | 1 x unbalanced RCA line-level output (stereo pair)
1 x unbalanced stereo 1/8" / 3.5 mm mini-plug output | | Level Controls | Off to 12 dB range | | Max Input/Output Gain | +20 dBV | | Frequency Response | 10 Hz to 20 kHz (±0.01 dB, Line) | | THD & Noise | < 0.05% | | Noise | < -85 dB (Below -10 dBV Output) | | Power | 24 VDC PSU, 30 mA (idle), 60 mA (max) | | Dimensions | 5.8 x 3.0 x 1.5 / 14.6 x 7.6 x 3.7 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.2 x 7.3 x 2.4" |
