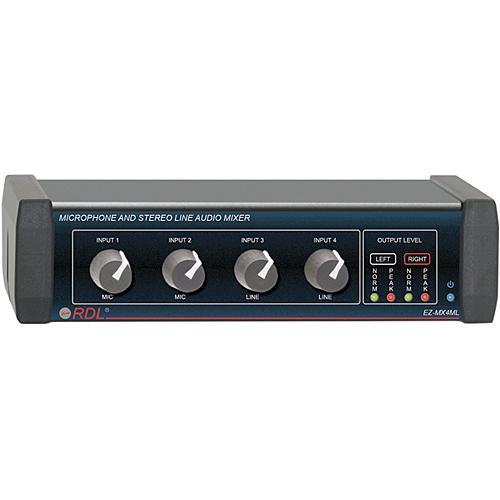

User Manual for RDL EZ-MX4ML - Microphone and Stereo Line Audio Mixer Click to enlarge the picture
Contents of the user manual for the RDL EZ-MX4ML - Microphone and Stereo
- Product category: Analog Utility Mixers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Analog Utility Mixers
|
User manual for the RDL EZ-MX4ML - Microphone and Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description Taking up 1/3 of rackmount space, the RDL EZ-MX4ML is a relatively compact four-channel mixer for microphones and line-level sources. It's a suitable solution for anyone who needs to mix the audio output of mic and line sources together into a single input. For example, if you have an MP3 player, a laptop, and two microphones, the EZ-MX4ML will allow you to connect them all to a single input on a speaker/amplifier, such as a PA system. Channels 1 and 2 are balanced XLR inputs for microphones, giving you 24V of phantom power for condenser microphones. Channels 3 and 4 have two gold-plated stereo RCA inputs for line-level signals, though channel 4 also features a stereo 3.5mm mini-plug input. Each of the 4 channels has a dedicated level control knob on the front panel. The output of the EZ-MX4ML features two gold-plated stereo RCA line-level jacks. The power plug on the rear panel locks into place to avoid unwanted disconnections (the EZ-MX4ML operates on standard AC power). It can be rack-mounted, secured onto a surface, or free standing. Dual-segment LED meters visually warn you if a signal is clipping. - 2 balanced microphone inputs on XLR
- 1 unbalanced stereo line-level input on RCA jacks (stereo pair)
- 1 unbalanced line-level input on either stereo mini-plug or RCA jacks (stereo pair)
- Unbalanced output on RCA jacks
- Microphone inputs provide phantom voltage
- Stereo LED VU meters for the left and right output channels
- Designed for dynamic or condenser microphones
- Headroom accommodates high-input levels
- Gold-plated RCA input and output jacks
UPC: 813721010124 In the Box RDL EZ-MX4ML - Microphone and Stereo Line Audio Mixer 24 VDC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-MX4ML - Microphone and Stereo Line Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-MX4ML Specs | Input Connections | 2 x Balanced XLR microphone inputs
4 x Unbalanced RCA inputs (2 stereo pairs)
1 x Unbalanced 3.5 mm stereo input, phone type | | Output Connectors | 2 x Unbalanced RCA outputs (stereo pair) | | Max Input/Output Gain | Mic Inputs: -11 dBu max
Line Inputs: -10 dBV nominal on RCA jacks or Mini jack, +20 dBV max
Output: -10 dBV nominal, +16 dBV max | | Impedance | Mic Inputs: 1.2 kOhms
Line Inputs: > 10 kOhms | | Frequency Response | 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter)
10 Hz to 20 kHz (±0.01 dB, line input) | | THD & Noise | < 0.1% (20 Hz to 20 kHz, -50 dBu mic input)
< 0.05% (20 Hz to 20 kHz, line input) | | Crosstalk | < -72 dB (1 kHz) | | CMRR | > -55 dB (20 to 20 kHz, mic input) | | Meter | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output | | Phantom Power | 24 V (IEC 61938:2013) | | Noise | < -65 dB (below -10 dBV output, -50 dBu mic input)
< -75 dB (below -10 dBV output, line input) | | Mounting Size | 1 RU, 1/3 rack width | | AC Power Requirements | 24 VDC power supply current | | Current Draw | 50 mA (idle), 80 mA (maximum), 100 mA (maximum with phantom) | | Dimensions | 5.8 x 3.0" / 14.6 x 7.6 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 0.965 lb | | Box Dimensions (LxWxH) | 10.25 x 7.4 x 2.5" |
