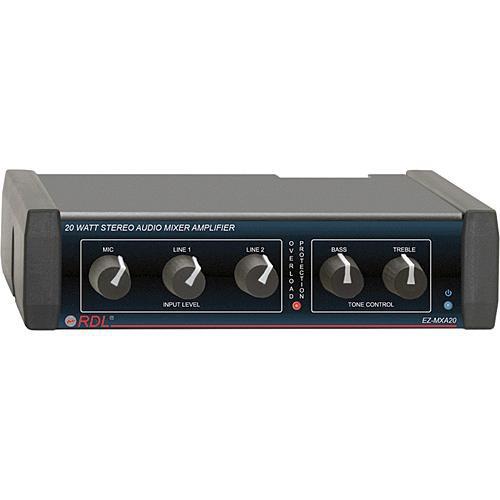

Product description The EZ-MXA20 20-Watt Stereo Audio Mixer and Amplifier from RDL is a 3-channel mixer with an integrated 20-watt amplifier designed for use in a variety of applications in houses of worship, restaurants, meeting rooms, commercial sound systems, and more. It features 2 stereo line RCA inputs, and an XLR mic-level input with selectable phantom power for condenser microphones. Its speaker cable outputs can be switched between 4 and 8 ohm impedance for compatibility with a range of speakers. Additionally, the stereo output has a 2-band EQ to help you shape your sound. A USA power supply is included. - Audio Amplifier with Mic and Line Input Mixer
- 10 Watts RMS Per Channel into 8 Ω
- 8 Watts RMS Per Channel into 4 Ω
- Switch-Selectable Load Impedance on Rear Panel
- Balanced Microphone Input on XLR
- Unbalanced Line Inputs on RCA Jacks
- Switch-Selectable Phantom on Mic Input
- Bass and Treble Tone Control Equalization
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amp
UPC: 813721010001 In the Box RDL EZ-MXA20 20-Watt Stereo Audio Mixer and Amplifier (USA Power Supply) PS-24AS Switching Power Supply vfrzwdzdxfasbcxuutffwd Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-MXA20 20-Watt Stereo Audio Mixer and Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-MXA20 Specs | Inputs | 1x 1.2 kΩ balanced mic-level XLR jack, -55 dBu minimum (for 10 W out)
2x stereo RCA jacks, 11 dBu maximum > 10 kΩ, -10 dBV nominal, -13 dBV minimum (for 10 W out), +22 dBV maximum | | Gain | Mic: Off to 74 dB
Line: Off to 32 dB | | Outputs | Speaker wire outputs (L, R)
10 W RMS into 8 Ω per channel or 8 W RMS into 4 Ω per channel, switch-selectable output impedance | | Equalization | ±10 dB @ 10 kHz, ±9 dB @ 80 Hz | | Frequency Response | Mic Input: 50 Hz to 20 kHz (±1.5 dB, 10 W)
Line Input: 35 Hz to 20 kHz (±1.5 dB, 10 W) | | THD + N | <0.25% | | CMRR | Mic: > -55 dB | | Crosstalk | < -68 dB (1 kHz, line input) | | Phantom Power | Switch-Selectable 24 V (IEC 61938: 2013) | | Noise | Line: <-70 db (below 10 w, -10 dbv)
Mic: <-65 dB (below 10 W, -50 dBu) | | Current | 24 VDC Power Supply Current:
170 mA (idle), 1000 mA (maximum) | | Dimensions (LxWxD) | 4.7 x 1.5 x 5.7" (12 x 3.7 x 14.5 cm) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.2 x 7.3 x 2.5" |
