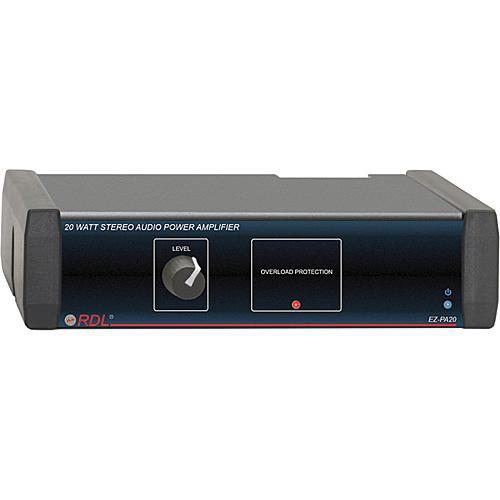

User Manual for RDL EZ-PA20 20 Watt Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the RDL EZ-PA20 20 Watt Stereo Power
- Product category: Standard Amplifiers RDL
- Brand: RDL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RDL Standard Amplifiers
|
User manual for the RDL EZ-PA20 20 Watt Stereo Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RDL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RDL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RDL product will considerably shorten its lifespan!
|
Product description The RDL EZ-PA20 20 Watt Stereo Power Amplifier is an ideal solution for houses-of-worship, conference rooms, classrooms, etc. The amplifier is capable of 8 or 4 ohm operation and features a built-in limiter for increased gain without peak distortion. The rear panel features stereo RCA connections and 2 speaker terminal posts. - Audio Amplifier with Front-Panel Level Control
- 10 Watts RMS Per Channel into 8 ohms
- 8 Watts RMS Per Channel into 4 ohms
- Switch-Selectable Load Impedance on Rear Panel
- Unbalanced Line Input on RCA Jacks
- Switch-Selectable Mono or Stereo Mode
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amps
- Mono Mode Switch Sums Left and Right Inputs
UPC: 813721010018 In the Box RDL EZ-PA20 20 Watt Stereo Power Amplifier Power Supply 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RDL EZ-PA20 20 Watt Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRDL EZ-PA20 Specs | Input | > 10k ohms, -10dBV nominal on RCA jacks, -13dBV Min. (for 10W out), +22dBV max. | | Gain | Off to 32dB | | Output | Left and Right, 10 Watts RMS into 8 ohms per channel or 8 Watts RMS into 4 ohms per channel, switch selectable output impedance | | Frequency Response | 35Hz to 20kHz (+/- 1.5dB, 10 Watts) | | THD & Noise | < 0.25% | | Crosstalk | < -68dB (1kHz) | | Noise | < -70dB (below 10 Watts) | | Power | 24VDC, 160mA (idle), 1000mA (max.) | | Dimensions | 5.75" x 5" (14.6 x 12.7cm) (WxD) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.1 x 7.2 x 2.4" |
